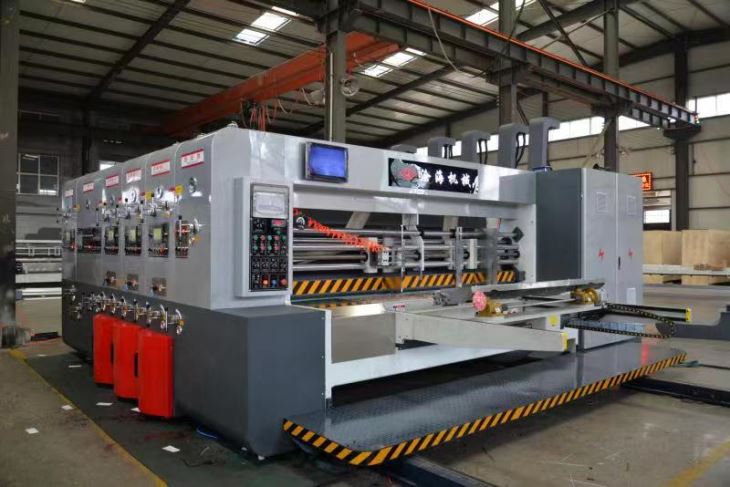

This product is a new type of product newly developed by our company. It has the advantages of high speed, quick change of order and good stability.
  Machine features
  ◆ this machine is designed and produced based on high quality, high speed, high efficiency, reliability and safety, with the advantages of quick changing order and easy operation.
  ◆ adapting imported PLC with touch screen control. It can save order, and accelerate the changing order speed.
  ◆ all cylinders and rollers are chrome plated for ideal hardless.
  ◆ transmission gears from precision grinded alloy steel and with spraying type circulating lubrication system.
  ◆ use expansion sets tight link to reduce abrasion of the shaft, keep high precision of the machine in long year.
  ◆ adopt hanging structure, auto reset, quick changing order.
  ◆ Using Self Locking gap adjustment device for ease operation.
  ◆ Electric element, bearing, and pneumatic element all use international famous brand.

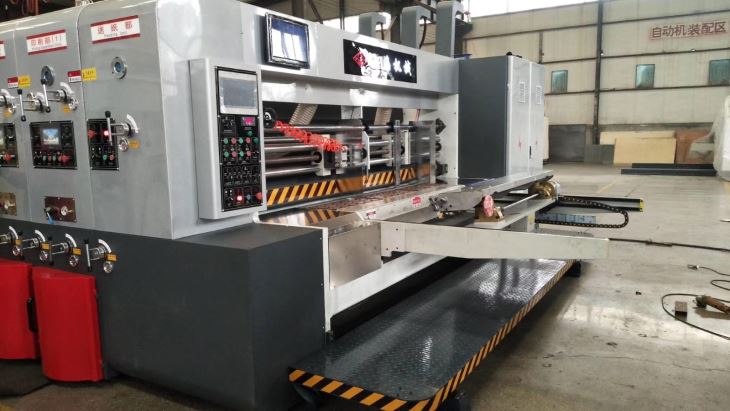

  Feeder unit
  ◆ lead edge feeder system, inverter adjust air volume, feeding in precision and seady.
  ◆ double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard.
  ◆ brushes and suction device remove dust from board surface.
  ◆ touch screen displays production speed and quantity.
  ◆ adjust the feed interval by manual.

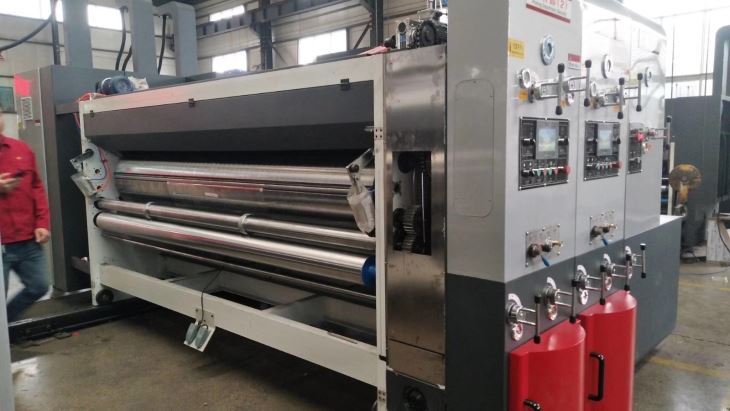

  Printer unit
  ◆ both printing cylinder and impression cylinder are made of high quality steel with grounding surface and chrome plated. Dynamic and static balance correction ensure to run stability.
  ◆ adopt hanging structure,,convenience and fast to set up.
  ◆ installing and uninstalling printing plate with pedal switch or operation panel to control forward and reverse.
  ◆ to match with feeding unit the machine with automatic lift anilox, when the feeding unit runs, the anilox roller goes down to contact with printing plate, while, on contract, leave printing plate.
  ◆ phase position utilizing electromagnetic clutch locking device, with intelligent zeroing funtion and can reset in dynamic and static condition.
  ◆ printing phase adopt PLC touch screen and 360 degree electric adjustment.
  ◆ pull roller quick lateral moving mechanism, self-locking gap adjustment device.

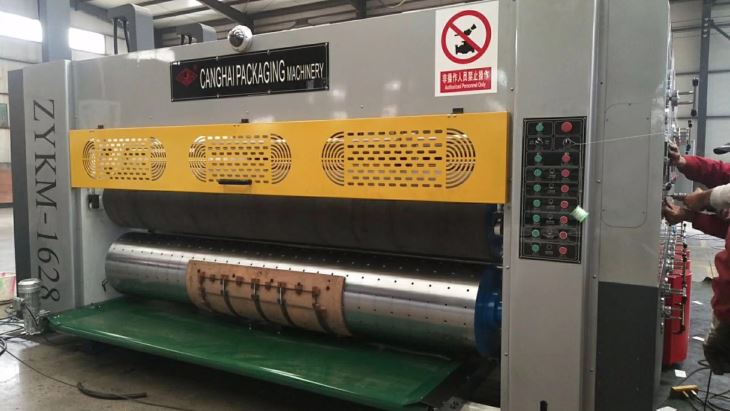

  Rotary die-cutter
  ◆ die cut unit roller adopt high quality steel, plated with rigid chrome. High precision dynamic and static balance increase running stable.
  ◆ mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut this can lighten machine load and increase rubber roller and die knife life.
  ◆ matching with feeding system, it with auto up and down device, the rubber roller will down when feeding paper. The rubber roller will up when stop feeding paper. To make sure every paper die cut correctly.
  ◆ the mechanical transmission rubber roller move 40mm in left and right side. It also with wear and tear regular could increase the life of rubber roller
  ◆ die cut phase adopt PLC touch screen, 360 degree adjust electric number.
  ◆ machine with rubber amend device, the rubber roller can be used after many times amend.

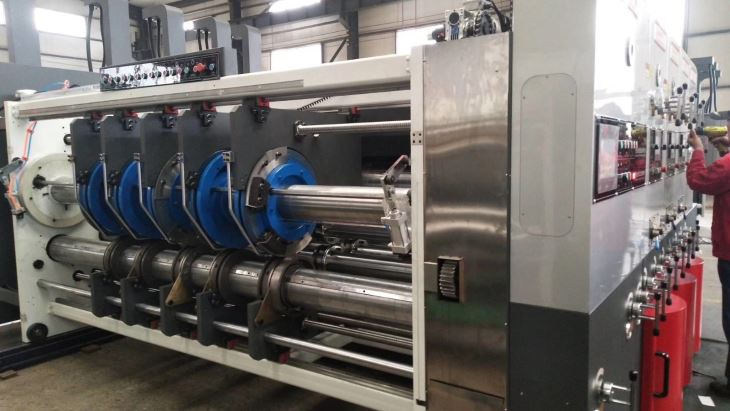

  ◆ free die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved efficiency.
