Corrugated Box Stitching Machine

SDJ-B Double pieces type stitching machine-3000 1 Technical parameters. 2. Characteristics 4 servo drives is import from Japan,high precision,which reduced mechanical transmission and fault rate. This machine adopt Omron PLC control system It takes only one minute to change the orders and

Send Inquiry

SDJ-B Double pieces type stitching machine-3000

1 Technical parameters.

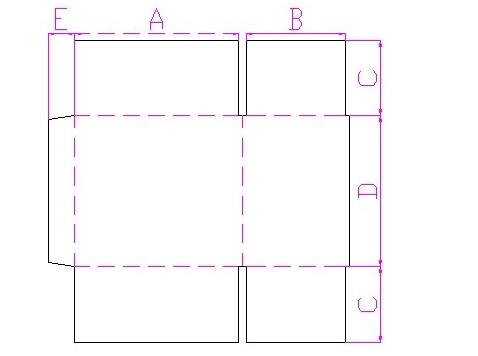

Parameters	SDJ-2000	SDJ-2400	SDJ-3000
Max.sheet size(A+B)＊2（mm）	4000	4800	6000
Min.sheet size(A+B)＊2（mm）	1060	1060	1060
Max.length A :mm	2850	2850	2850
Min.length A:mm	350	350	350
Max.width B:mm	1000	1200	1500
Min width B :mm	180	180	180
Max.height（C+D+C）（mm）	2500	2500	2500
Min.height（C+D+C）（mm）	400	400	400
Max.C（mm）	560	560	560
Min.C（mm）	50	50	50
Max.D（mm）	2000	2000	2000
Min .D（mm）	150	150	150
Max.E(mm)	45	45	45
Stitching distance:mm	30-150	30-150	30-150
Stitching No.	1-99	1-99	1-99
Working speed（time/min）	500	500	500
Weight （T）	2.5	3	4

2. Characteristics
4 servo drives is import from Japan,high precision,which reduced mechanical transmission and fault rate.
This machine adopt Omron PLC control system
It takes only one minute to change the orders and stitching distances.
Order sized is adjusted by computer .
There are counting function at the end of the machine ,it can output based on setting.
Working speed: 500 stitches per minute
Stitching distance ranged from 30 to 120mm,adjusted by computer .
Any machine fault will display on screen.
It both fits for single piece and double pieces carton.
single nail(/), double nails(//), strengthen nails(// / //) is ok .
It fits for 3 layer,5 layer and 7 layer carton.
3. Configuration sheet

No	Name	Brand	Origin	Ref
01	Servo motor of stitching head	Yaskawa	Japan
02	Servo motor of feeding unit	Yaskawa	Japan
03	PLC	Omron	Japan
04	Contactor and intermediate	Siemens	Germany
05	Reducer	The ming	Taiwan	2 sets
06	CAVEX Reducer	True praise	Hanzhou	2 sets
07	Photoelectric, switch	Omron	Japan
08	Touch screen	Weilun	Taiwan
09	Intermediate relay	Schneider	Franch
10	Universal joint	Jade bamboo	Taiwan
11	Nail head		Japanese steel imported
12	Cylinder, solenoid valve	The dirk	Taiwan
13	Knife		Tungsten alloy	Resistant abrasion
14	Bottom die		Tungsten alloy production	Corrosion resistant
15	Bearing	Humanistic	Jiangsu

4 Payment item:
FOB XIN GANG PORT USD 27000 ONLY(Equal to RMB178000).
PAYMENT ITEM: Payment item: 30% T/T IN ADVANCE,THE BALANCE 70% T/T BEFORE THE SHIIPPING.
DELIVERY TIEM: 20 DAYS AGAINST THE ADVANCED PAYMENT DAYVALID: BEFORE 31TH Aug. ,2017
