Corrugated Box Printing Machine

1020type Chain feeder 4 color printing sloting machine（This picture is a large size picture, just for reference） Configuration 1.it adopts chain-paper feeding，good quality,it can send irregular paper easily,it is a good equipment for large-size cardboard 2.transmission gear are made from

Send Inquiry

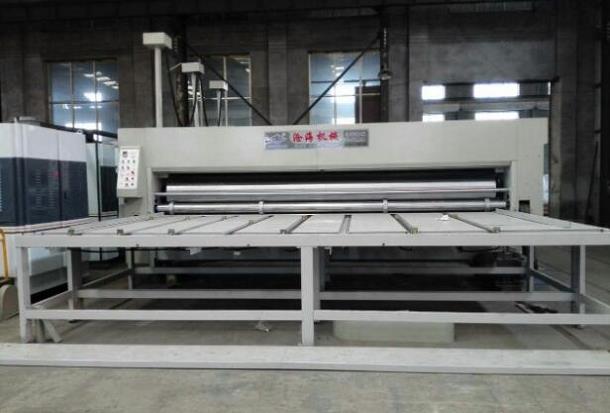

1020type Chain feeder 4 color printing sloting machine（This picture is a large size picture, just for reference）

QUOTATION
FOB Tianjin		USD($)
No.	Description	Size	U/M	Q'ty	Unit Price	Total
Chain feeder 4 colors printer and slotter machine		1000*2000mm	Unit	1
FOB Tianjin		Total
NOTE: 1.Payment item: 50%T/T in advance, the balance 50% T/T before the shipping. 2.Delivery time: 60 days against the advanced payment day 3.Validity: The quotation will be valid for 30 days 4.Installation: Engineers available to service machinery overseas 5.Warranty period: one year after the installation, technical service provided free of charge for life

Configuration

name		1020
Max paper coverage	mm	920*2100
Effective printing area	mm	920*2000
Min finish size	mm	250*530
Thickness of printing plank	mm	6
Adapt to cardboard thickness	layers	3,5,7
Slot width	mm	7
Cut corner deepness	mm	50
Max.depth of slot	mm	250
Topping precision	mm	±0.75
Slotting precision	mm	±1.2
Max speed	Pcs/min	60
Economy speed	Pcs/min	30-50
power of motor	kw	7.5-11

1.it adopts chain-paper feeding，good quality,it can send irregular paper easily,it is a good equipment for large-size cardboard
2.transmission gear are made from high-hardness heat , Precision machining and Slider gear like a ”+”
3.the device with rockery interval adjustment avoid the upper and lower roller shifting ,thus ensures balanced operation and clear print without double shadow
4.auto cycling ink-feed system,roller lift pneumatic and seprate rotaing
5.all the axles of roller is printed by chrome in order to increase the hardness
6.the adjustment structure of printing and slotting phase adopt the structure like planet (it can be adjusted 360 degrees while revolving and stopping)
7.electrically separation and pneumatic locking
8.module design, any combination of multi—color printing unit
9.convenient operation ,flexo printing,elegant patterns and words,fast drying,suitable for large-scale paper carton manufacturing
10.auto count device to show right production volume.
every part of the machine
Printing unit ：
1.Both printing cylinder and impresssion cylinder are made of high quality steel with grounding surface and chrome plated. Dynamic and static balance correction ensure to run stability.
2.Adopt hanging structure, convenience and fast to set up.

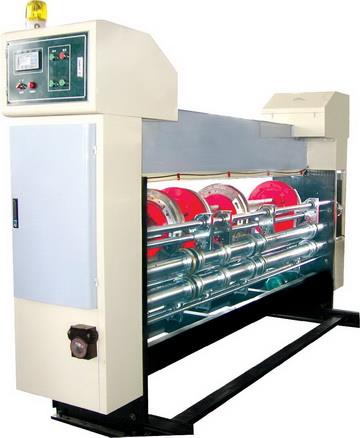

Slotting unit:
1.The slot knife thickness is 7 millimeter, which is from high quality alloy,tooth profile in sharp cutting,high wearable.
2.The slot knife with phasing and box height adjustment device,PLC control the dynamic 360 degree adjustment.
3.The slot knife seat lateral movement uses the electric control,in fast ans accurate.
4.Regards the user s need it can match the punch device.
5.Slot department add prepress wheel to improve the cardboard resistant to compression ability.
6.Spring type single slitting knife with glabrous slitting effect and cost saving.
