Rotary Die Cutting Machine

Product description die cutter machine according to the different forms of embossing, mainly divided into three types of rotary die cut machine, flat bed die cut machine, flat platen die cut machine. Rotary die cutting machine carton box is characterized by line contact, die cutting pressure

Send Inquiry

Product description

die cutter machine according to the different forms of embossing, mainly divided into three types of rotary die cut machine, flat bed die cut machine, flat platen die cut machine.

Rotary die cutting machine carton box is characterized by line contact, die cutting pressure, high production efficiency, and offset printing machine, flexo printing machine, gravure printing machine and other printing equipment can be connected to the line die cutting, so the scope of application is relatively wide.

Item	Rotary die cutting machine
	1020		1224		1428		1630
Max speed	220s/min		180s/min		160s/min		140s/min
Max feeding size	1000*2000mm		1270*2600mm		1500*3000mm		1660*3200mm
Min feeding size	260*650mm		320*750mm		350*750mm		400*750mm
Skip feeding	1250*2200mm		1500*2600mm		1800*3000mm		2000*3200mm
Print area	950*2000mm		1200*2400mm		1430*2800mm		1600*3000mm
Print thickness	7.2mm(include plate mattress)
Max slotting depth	250mm	320mm		390mm		430mm
Min slot gap(nomal)	150150150*150mm
Min slot gap(reverse)	25050250*50mm		250110250*110mm
Print accuracy	≤±0.35mm		≤±0.4mm				≤±0.5mm
Cardboard thickness	2.5 - 9mm		2.5 - 12mm

Whole set machine feature
1)The die cutter machine designed and produced based on high quality, high speed, high efficiency, reliability and safety, with quick changing order and easy operation
2) Adapting imported PLC with touch screen control. It can save order, and accelerate speed of changing order.
3)high quality corrugated carton box die cutter machine adopt high quality material and assembly part, all cylinders and rollers are chrome plated for ideal hardness
4)Transmission gears from precision grinded alloy steel and with spraying type circulating lubrication system.
5)Use expansion sets tight link to reduce abrasion of the shaft, keep high precision of machine for long year.
6)Each unit of die cutter machine equipped with emergency stop switch to ensure safety operation
7)Self-locking clearance adjustment device, easy to operation
8)Electric element, bearing, and pneumatic element all use international famous brand

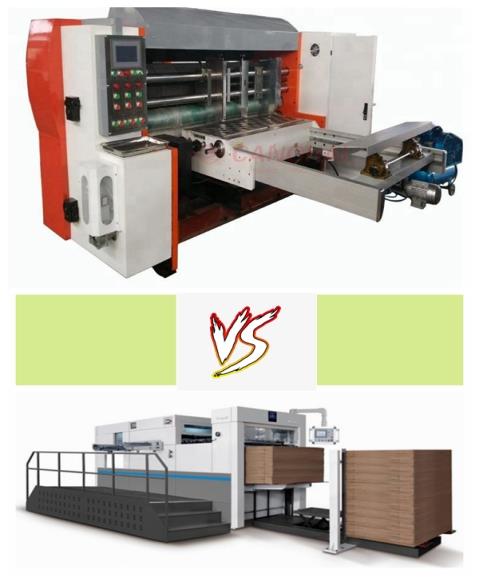

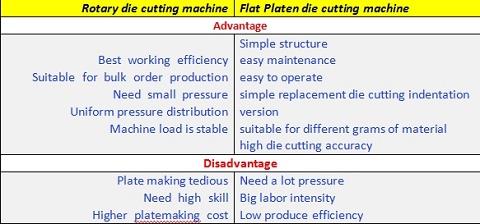

Compare

Finished Products

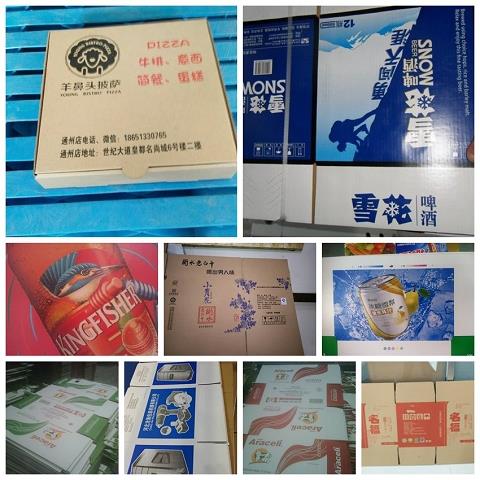

Finished Carton box

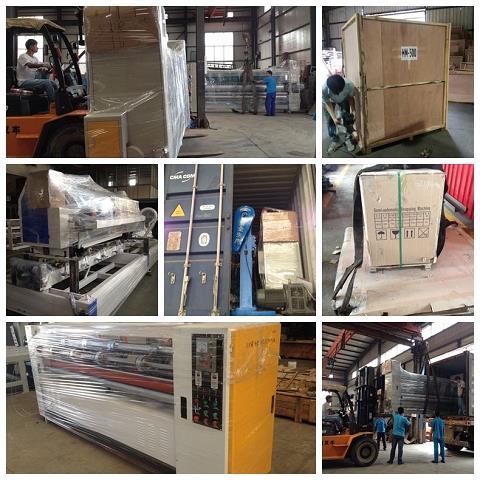

1)Inside packaging could be iron frame:it is more firm to avoid shake and damage.

2)Outside packaging could be wooden case: the wooden case is of soft texture could reduce damage from impact
