Paper mill type

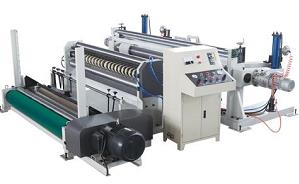

TSFQ-1600C High speed cutting machine

Technical parameter

Synchronization controller

Parent roll width

1600(mm)

The main execution device(Contactor etc.)

CHNT

Parent roll diameter

1200(mm)

Signal components（Proximity switch etc.）

Hugong

Rewind diameter

1200(mm)

Cylinder components

TIANAO

Slit width

>30(mm)

The hydraulic system

Ruiteng

Paper model

80-600g

Frequency converter

Anruiji

The main power

11kw

Configuration device

Paper on the way

Hydraulic

Charging

Hydraulic lift system  Electric clamping

Number of cutter

18

Blanking

Pneumatic

Winding way

Gas up outside the closed

Tension adjustment

Pneumatic brake

Paper down the way

Pneumatic

Single gas rose axis winding

Control of motor speed control

Frequency control

Double cutting, thick blades

Cutting speed

1-250（m/min)

The input power

380V  220V

The number of operations

1

Size(mm)

Application tools

Pneumatic runner，an Allen wrench，air tap 2

Unreeling machine：Length*width*height

4000mm*1200mm*1300mm

Winding machine：Length*width*height

2900mm*1700mm*1200mm

Upper slitter
specifications

2*105*75mm

Bottom slitter specifications

8*105*65mm

The total weight

2800KG

The transmission system

Main motor

Qiangsu

The host speed

1400r∕min

Hydraulic station motor

2.2kw-60

Intensify reducer

1.1KW×2

The transmission way

The chain

Bearing

Wanxiang

Receive a scroll

Gas rose axis
