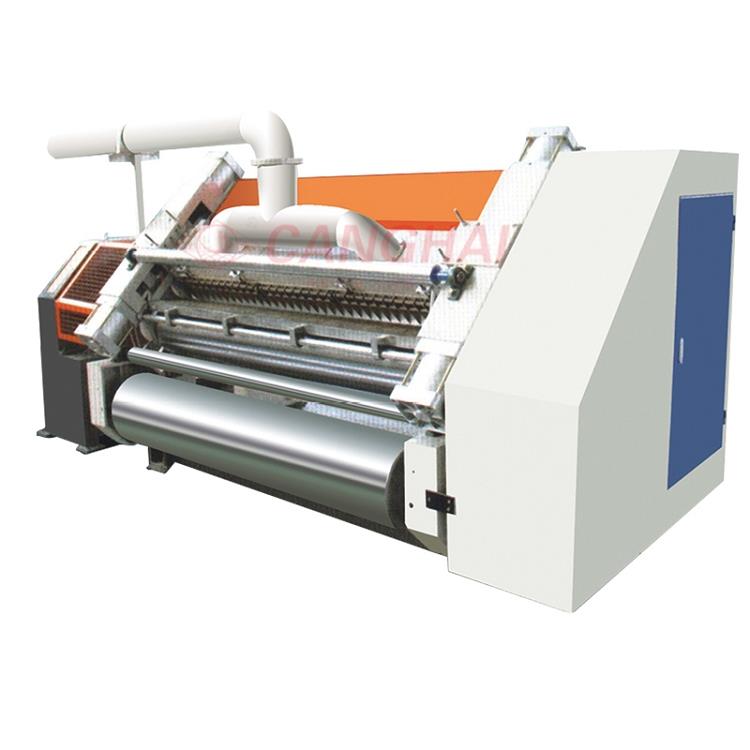

※Structural features：
  ★Adopt vacuum suction structure, with high pressure strong blower.Suction with silencer.Gas supply and electrical control cabinet to focus on the same operation cabinet，not less than 1.5 meters away from the host，Fully enclosed full operation side。
  ★base and wallboard cast iron wall，Wallboard thickness130mm。universal Joints。
  ★corrugated roller material adopt  48CrMoalloy steel，quenched、Laser hardening，Surface finish，main roll of corrugated diameter¢ 280mm，surface hardnessHRC60degree above。The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.
  ★pressure roller ¢ 284mm,surface grinding and chrome-plated；cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices)。
  ★pneumatic control glue to glue back, glue roller diameter ￠215mm,Engraved polished surface after a 25-line pit style textured machined chrome plated，after scraping the roller surface polished hard chrome plated.
  ★Corrugated roller, pressure roller materials provided by the Central Plains Steel，High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.
  ★preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm，connecting with metal Hose.
  ※regular technical parameters：
  1.effective width：1600mm
  2.operation direction：left or right（determined in accordance with customer plant）
  3.design speed：100m/min
  4.temperature range：200—260℃
  5.corrugated flute:（UV type or UVV type
  ※roller diameters parameters：
  1.diameter of corrugated roller： ￠280mm
  2.diameter of pressure roller： ￠284mm
  3.diameter of glue roller： ￠216mm
  4.diameter of preheat roller： ￠320mm
  ※powered motor parameters：
  1.main drive motor：7.5KW
  rated voltage：380V 50Hz
  Continuous (S1) working standard
  2.suction motor:7.5KW
  rated voltage：380V 50Hz
  Continuous (S1) working standard
  ※main purchased parts、materials and place of origin：
