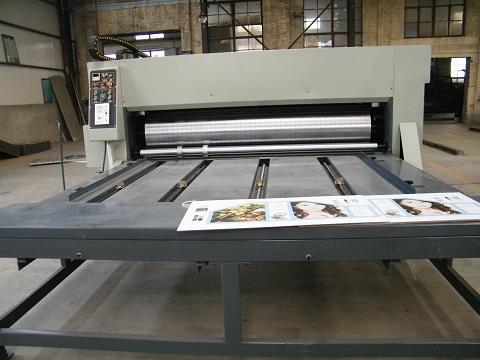

LYKM1224 Four Color Printer Slotter Die Cutter Machine with Stacker

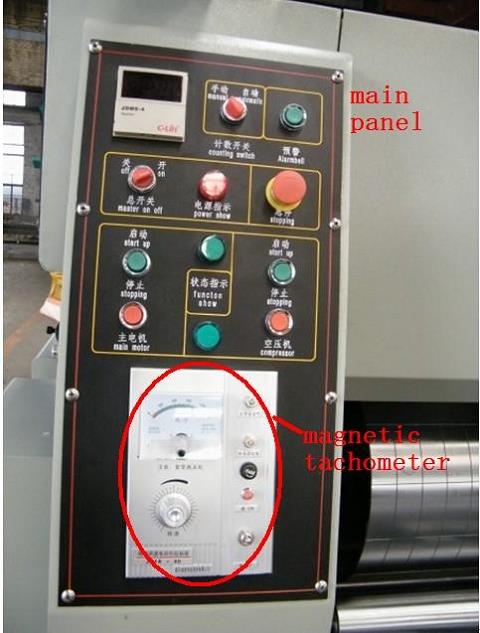

Side panel
1.PARAMETER
|
Model |
LYKM-1224 |
|
|
Max.machine speed(pcs/min) |
100 |
|
|
Max.feeding size(mm) |
1200*2500 |
|
|
Max printing area(mm) |
1200*2400 |
|
|
Max.depth of slotting(mm) |
250 |
|
|
Printing plate thickness（mm） |
6 |
|
|
Layers of cardboard |
3、5、7 |
|
|
Slot Width(mm) |
7 |
|
|
Cut corner deepness（mm） |
50 |
|
|
Registration precision(mm) |
≤0.6 |
|
|
Slotting precision(mm) |
≤±1.2 |
|
|
Die cutting precision(mm) |
≤±1.2 |
|
|
Min.slotting interval(mm) |
Normal |
160*160*160*160 |
|
Reverse |
240*80*240*80 |
|

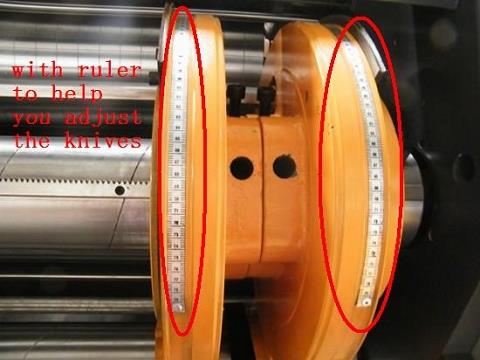

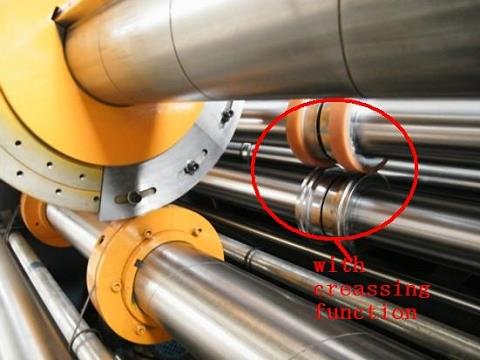

1.slotting knives set can horizontal movement ,precision gear with smooth bar which plated with rigid chrome and ground surface ,movement flexible and accurate orientation of upper and lower cutting

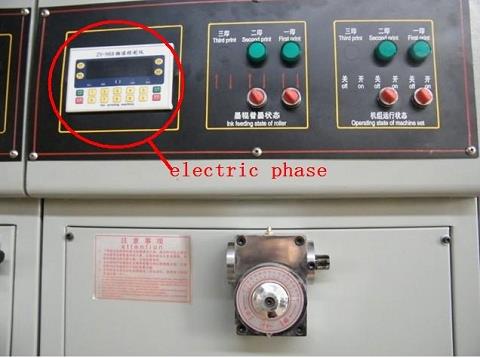

2.the phase of slotting adjust by electric digital 360°,slot height by manual.
3.The press line wheel and slotting knives movement in a joint ,control by manual
4.The slotting and press line interval adjustment adopt the self-lock structure

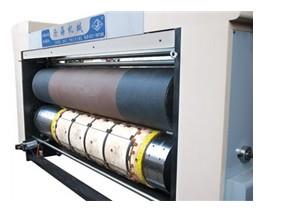

Die cutting unit

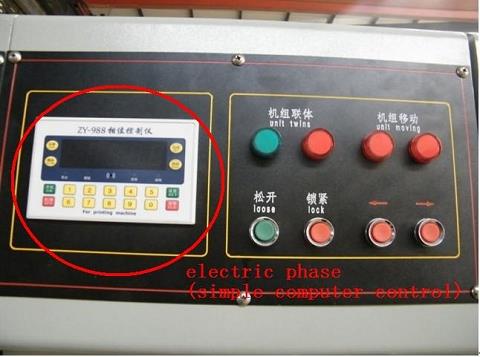

1.the die cutter phase is controlled by computer and electric digit
2.The die cutting scraper could be adjusted horizontally with computer and electric digit control ranging from +5mm to -5mm

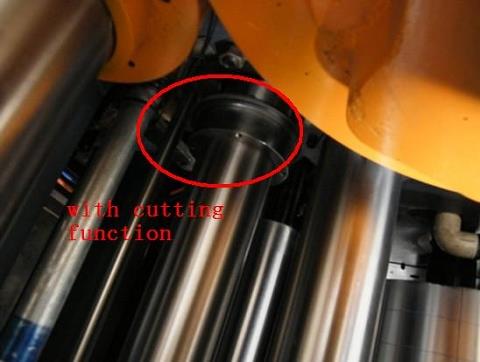

3.The glue roller cuts the trimming mechanism and the cushion could be used for many times and saved the use cost to a great deal
4.The cushion roller's mechanical, horizontal and cam facility from +35mm to -35mm could raise the service life of the cushion of the die-cutting
5.self-balancing device for the rubber roller can keep the carton board in the same size after itself being damaged.

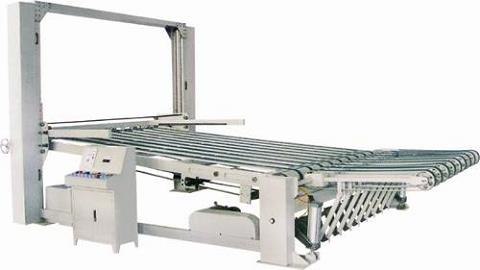

Stacker Unit
1) The paper can then manually adjust automatically.
2) splicing speed and feed speed is synchronization, then the paper speed can be adjusted independently
3) The stack height of 1600 mm
4) bed units lifting strength chain drive.
5) The splicing platform equipped with anti-fall device to ensure operator safety.
6) take action paper hanging pressure plates stacked in cardboard to a certain height, then lift up out of cardboard board automatically.
7) plane wrinkle belt, to prevent the cardboard down.
8) received a separate paper to adjust the belt tension arm, without the belt length limit.
