Product description
1.The shaft of the machine is chrome plated and polished.
2. The gear of the whole machine is made of high quality 45 # carbon steel which has been processed by high frequency fire. The gear is made of keyless expansion connection device to reduce central wear and tear and maintain long-term printing registration.
3, the transmission part is sprinkler automatic lubrication, oil tank is all made of thick iron plate finishing, can avoid oil leakage.
4. The bearing of the whole machine is all made of the national high-quality and famous brand product -- oahu.
5, the whole machine wallboard for cast iron after heat treatment annealing, thickness of 40mm
Complete machine specification
|
Item |
pizza box making machine |
||||||
|
1020 |
1224 |
1428 |
1630 |
||||
|
Max speed |
220s/min |
180s/min |
160s/min |
140s/min |
|||
|
Max feeding size |
1000*2000mm |
1270*2600mm |
1500*3000mm |
1660*3200mm |
|||
|
Min feeding size |
260*650mm |
320*750mm |
350*750mm |
400*750mm |
|||
|
Skip feeding |
1250*2200mm |
1500*2600mm |
1800*3000mm |
2000*3200mm |
|||
|
Print area |
950*2000mm |
1200*2400mm |
1430*2800mm |
1600*3000mm |
|||
|
Print thickness |
7.2mm(include plate mattress) |
||||||
|
Max slotting depth |
250mm |
320mm |
390mm |
430mm |
|||
|
Min slot gap(nomal) |
150*150*150*150mm |
||||||
|
Min slot gap(reverse) |
250*50*250*50mm |
250*110*250*110mm |
|||||
|
Print accuracy |
≤±0.35mm |
≤±0.4mm |
≤±0.5mm |
||||
|
Cardboard thickness |
2.5 - 9mm |
2.5 - 12mm |
|||||

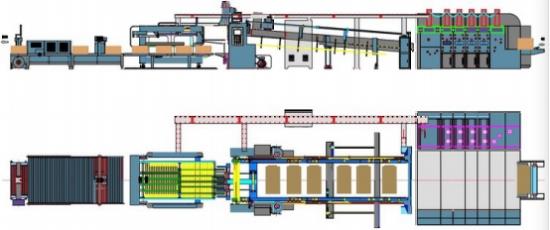

Front and side drawing for whole set
From right to left is
1. front edge feeding machine
2. printing machine
3. Slotting machine
4. Die cutting machine
5. Gantry stacker
6. Lifting fold gluer machine
7. Paperboard Feeding machine
8. Box strapping machine

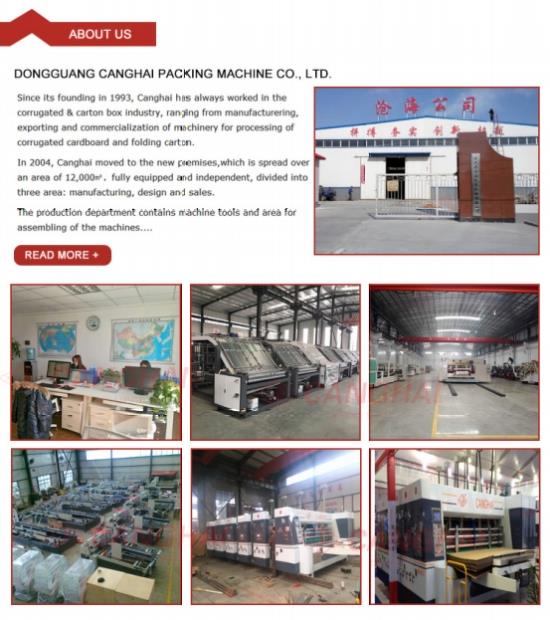

Company Information

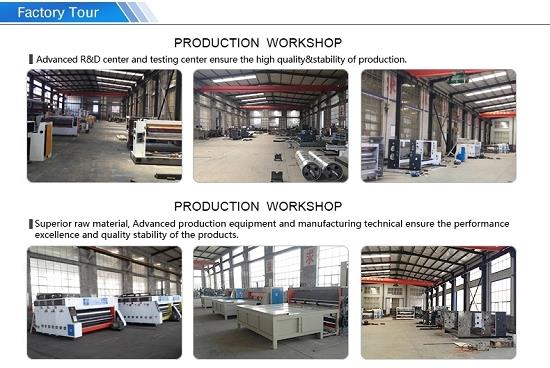

Workshop
FAQ
How about delivery?
According to order quantity, within one month if less than 5 set.
What's the guarantee, in case the machine breaks down?
The machine has 3 years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
What's the trade term?
Both FOB and CNF/CFR/CIF is OK.
