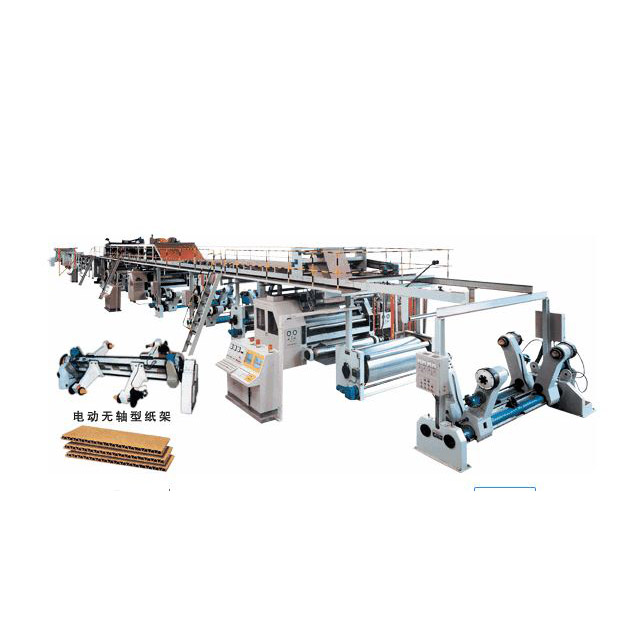

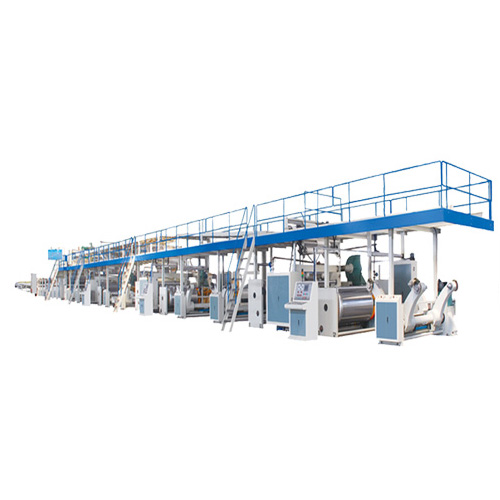

It is a special equipment for corrugated board production.
  It is mainly composed of base paper frame, surface (core) paper preheater (regulator), single-side corrugated machine, transport bridge, glue coating machine, double-side machine, longitudinal cutting line machine, transverse cutting machine, stacking machine, heating system and air compression system.
  The main equipment of rubber making system, electrical control system and so on. Different models and different quantities of equipment can be composed of high, medium and low three different specifications, different grades of three, five, seven corrugated board production line. The factory in the absorption of advanced technology at home and abroad. Based on extensive understanding of user needs. Development and design speed from 60-180 / min. Paper width from 1400-2200mm,UV shape A. C,B,E, three of the four hulls. Five, seven layer corrugated board production line as required.
  Specification
  Function and features
  ◆The corrugating roll is made of chrome molybdenum alloy steel
  ◆UV type is selected for corrugated rollers．which are elaborately designed with lower take
  up ratio and high cardboard intensity．
  ◆Con'ugated roller ground with advanced molding and computer indexing technology and
  guarantee the size of corrugation conform to national standard
  ◆Surface manufacture with intermediate frequency quenching heat treatment．hardness have reached up to HR60°,which is characterized by perfect flute and long service life.
  Front and side drawing for whole set

Item	corrugated cardboard production line
	1020		1224		1428		1630
Max speed	220s/min		180s/min		160s/min		140s/min
Max feeding size	1000*2000mm		1270*2600mm		1500*3000mm		1660*3200mm
Min feeding size	260*650mm		320*750mm		350*750mm		400*750mm
Skip feeding	1250*2200mm		1500*2600mm		1800*3000mm		2000*3200mm
Print area	950*2000mm		1200*2400mm		1430*2800mm		1600*3000mm
Print thickness	7.2mm(include plate mattress)
Max slotting depth	250mm	320mm		390mm		430mm
Min slot gap(nomal)	150*150*150*150mm
Min slot gap(reverse)	250*50*250*50mm		250*110*250*110mm
Print accuracy	≤±0.35mm		≤±0.4mm				≤±0.5mm
Cardboard thickness	2.5 - 9mm		2.5 - 12mm

  Function and features
  ◆The corrugating roll is made of chrome molybdenum alloy steel
  ◆UV type is selected for corrugated rollers．which are elaborately designed with lower take
  up ratio and high cardboard intensity．
  ◆Con'ugated roller ground with advanced molding and computer indexing technology and
  guarantee the size of corrugation conform to national standard
  ◆Surface manufacture with intermediate frequency quenching heat treatment．hardness have reached up to HR60°,which is characterized by perfect flute and long service life.
  Front and side drawing for whole set

From right to left is
  1. front edge feeding machine
  2. printing machine
  3. Slotting machine
  4. Die cutting machine
  5. Gantry stacker
  6. Lifting fold gluer machine
  7. Paperboard Feeding machine
  8. Box strapping machine
  Sample show

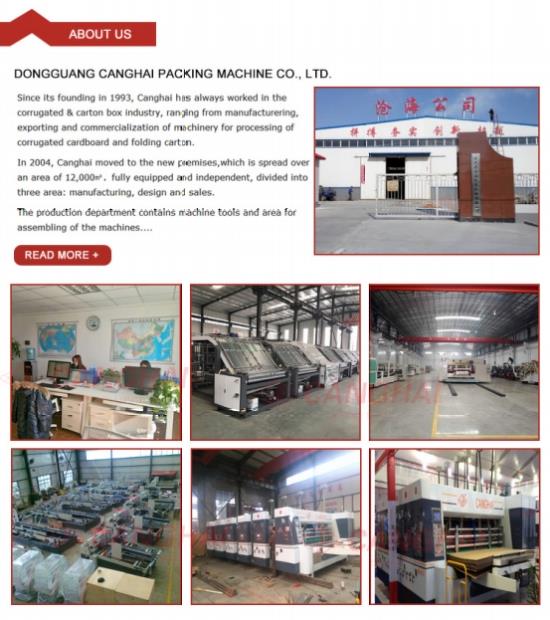

Company Information

Exhibition

Factory visit

Team picture

FAQ
  What's your advantage?
  We have working in this line for 25 years, own enough experience to keep quality and power of problem settle.
  What's the guarantee, in case the machine breaks down?
  The machine has 3 years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
  What's the payment terms?
  30% deposit, 70% balance before delivery by T/T is prefer. Small amount with West Union or Paypal is acceptable.
