Product description

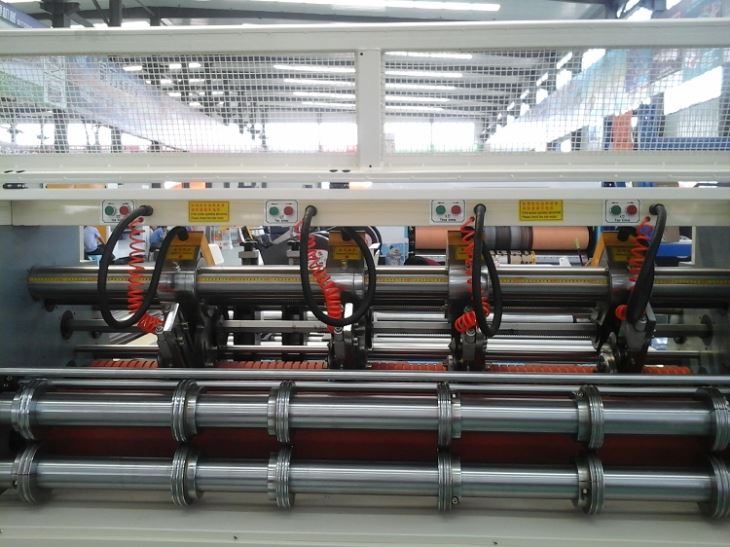

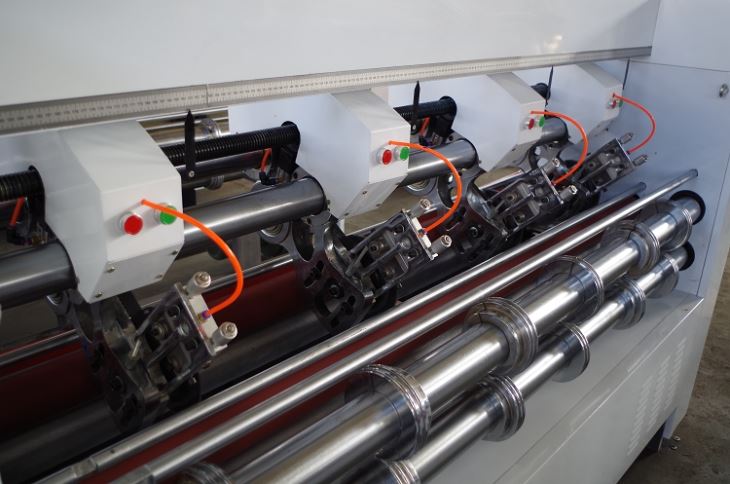

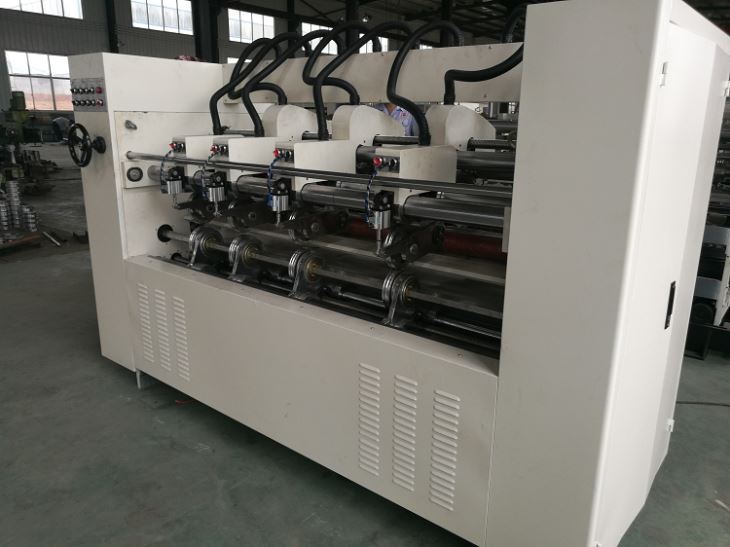

Computer screw cutter cross - cutting machine is suitable for three, five, seven layers corrugated board.
Adopt spiral cutter structure, rotary cutting board, big difference of scissors, low impact force, low power of motor and low noise. Gear transmission adopts gap adjusting device, high transmission precision, high shear precision, cutting length, can input multiple orders at the same time, including the length and quantity of cardboard.
After completing one set, the second set of specifications can be automatically changed for cutting.
The operation table adopts screen display, which can display the production speed, the length of cut cardboard, the number of cut pieces, the number of pieces left, and has the function of supplementary cutting, elimination, and so on, and display the precision of each cut cardboard, the length of cut paper 500mm-9999mm cut paper precision plus or minus 1mm, high degree of automation
Usage and function:
1.Mechanical speed: 180m/min, 250m/min is available for selection.
2.Effective width: 1400mm-2500mm.
3.Cutting paper length: 500mm-9999mm.
4.Paper cutting accuracy: + / - 1mm.
5.The use of independent oil pump and filter with two groups of copper pipe distribution in each gear position oil supply, lubrication and
6.Cooling.
7.The use of spiral structure, serrated knife type, reduce cutting board resistance, low noise.
8.Knife shaft: high quality alloy steel roll, after balance treatment, with good stability.
9.Before and after the paper feeding wheel are using the sun wheel paper pressure, smooth transmission, uniform pressure, not easy to crush
10.Cardboard or clogging.
11.This model is energy storage brake (non-energy consumption brake), so in the production process of low energy consumption, the average use
12.The electric quantity is 1/3 of the ordinary NC cutting machine, saving more than 70% of the electric quantity and achieving the goal of saving money.
13.Precision adjustable seamless gear, ensure accurate meshing of the blade, running balance.
14.The computer can store multiple sets of orders, the man-machine interface is separate, the screen displays a variety of production information, with
Package
1)There is waterproof wrapped on the product surface before shipment
2)We also accept custom according to your requirement
