Automatic electrical

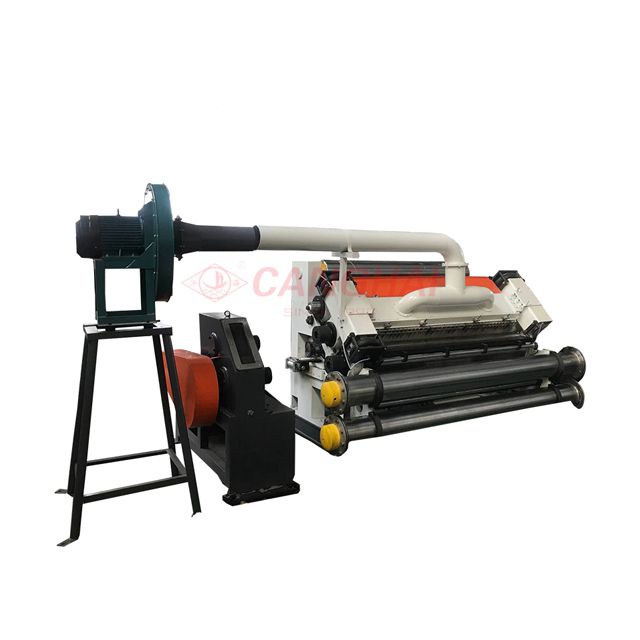

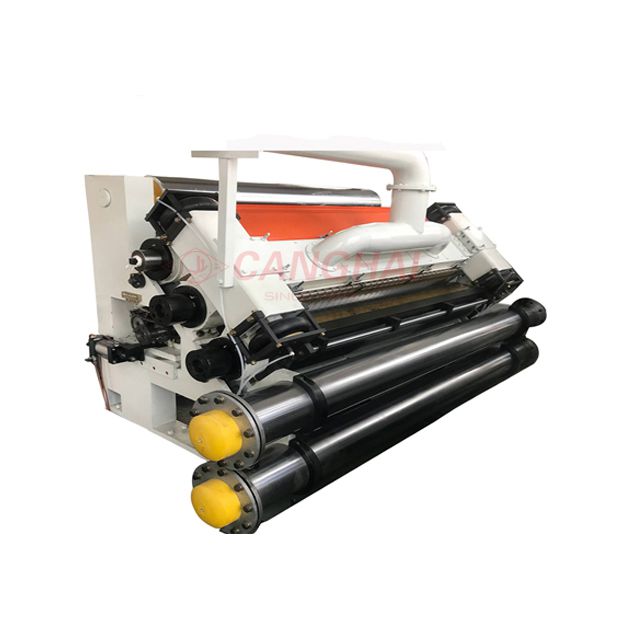

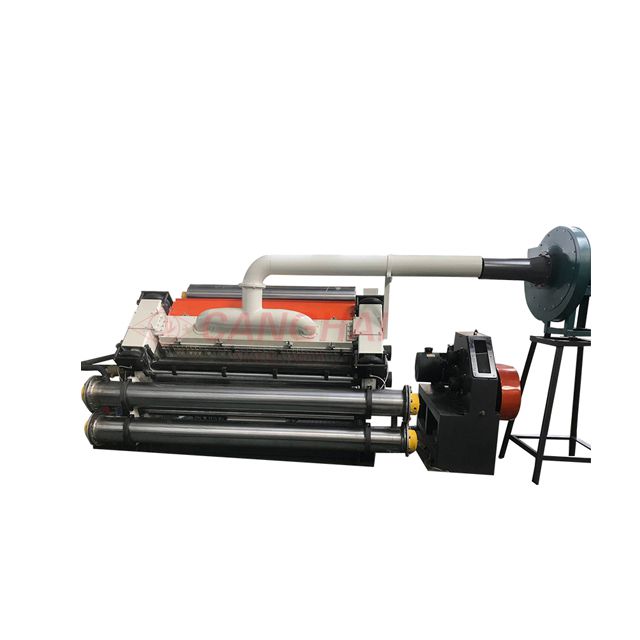

  Is one of the important equipment of corrugated carton production line. The forming quality of corrugated board is closely related to the correct use and maintenance of single-sided machine. Single-side machine produces corrugated core paper (corrugated paper in the cardboard special name) mechanical equipment, in the corrugated packaging industry, known as the "corrugated board production line" of the heart.
  ※ structural features:
  ★Adopt hood suction structure, with high pressure strong fan.Suction air with muffler;The operating cabinet shall be no less than 1.5m away from the host, and the operating side shall be fully enclosed with a full cover.
  ★Machine base and wallboard cast iron structure, wallboard thickness of 220mm.Independent transmission, universal joint transmission.
  ★Taken the corrugated roller adopts 48 crmo alloy steel, tungsten carbide processing (Shanghai), corrugated roller diameter ¢360 mm, surface hardness above HRC60 degrees.Key parts of the tile roller, pressure roller bearing using Swiss SKF bearing.
  ★Taken the pressure roller ¢380 mm, surface grinding and chrome plated treatment;The material is medium carbon steel no.45, tempering and tempering treatment.
  ★Taken the board structure is used to glue wallboard, glue spreader ￠250 mm diameter surface after polishing with 32 lines after pit type checker processing hard chromium plating processing, scraping the rubber roller surface after grinding hard chromium plating processing.(cots, cots changzhou haili production)
  ★The rubber coating department can be moved as a whole, the replacement of rubber roller is fast and convenient.Electric adjustment glue quantity digital display.
  ★Taken the preheat roll using days steel seamless steel tube production ¢400 mm, all connected with metal hose.
  ★Modular structure, tile roller assembly and coated part assembly can be quickly replaced.Gas circuit and electrical separation.
  ※ general technical parameters:
  1. Working width: 2200mm
  2. Operation direction: left or right (as determined by the customer plant)
  3. Design speed: 200m/min
  4, temperature range: 160-200 ℃
  5. Gas source: 0.4 -- 0.9Mpa
  6. Steam pressure: 0.8-1.3mpa
  7, corrugated (UV or UVV) :
  A, B, C, E tiles and other corrugated (corrugated high) are optional.
  ※ roller diameter parameters:
  1, corrugated roller diameter: 360 mm ￠
  2, pressure roller diameter: 380 mm ￠
  3, glue roller diameter: 250 mm ￠
  4, preheater diameter: 400 mm ￠
  5. Control paste roller diameter: 140 mm ￠
  ※ power motor parameters:
  1. Main motor: 37KW rated voltage: 220V 60Hz continuous (S1) working mode
  2. Suction motor: 18.5kw rated voltage: 220V 60Hz continuous (S1) working mode
  Finished Carton

Packing and shipment

1)Inside packaging could be iron frame:it is more firm to avoid shake and damage.
  2)Outside packaging could be wooden case: the wooden case is of soft texture could reduce damage from impact
  3)There is waterproof wrapped on the product surface before shipment
  4)We also accept custom according to your requirement
  Trade Shows

Customer visit

Certifications

FAQ
  1. Are you a trading company or factory?
  We are the manufacturer and also we have import export license. We have been making automatic high speed water based printing slotting die cutting machine for more than 25 years.
  2. Where is your company located? How can I visit there?
  Our factory address: dongguang county, Cangzhou city, hebei province,China
  3. Can you send technician for installation and training?
  Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
  4. What’s your advantages ?
  -- 25 years' experience: We have been in making automatic high speed water based printing slotting die cutting machine
  for 25  years.
  5. Whats your warranty time
  We can take 3 years warranty, actually our longest cooperation customer have been using our product for more than 10 years with no problem.
