Introduction:
  Suitable for laminating of cardboard and corrugated cardboard in 150-600 g/m2 .
  The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
  Using suction automatic feeding of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
  The machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.
  Machine uses touch-screen/PLC/servo motor control system, double frequency control type , the circuit system is stable, and can automatically display the failure alarm.
  Automatic gluing, and the glue can be used circulatory, avoid glue waste.
  Measure roller line-speed design scientifically, avoid glue fly out when the speed is high.
  Pressure rollers adopt unilateral adjustment, convenient and fast.
  Cleaning type : bottom roller is extruded by rubber roller to clean the bottom laminating pressure roller, ensure the cleaner on the reverse of the bottom paper . Make glue etc. foreign matter after washing direct subside in tank. At the same time , adopting the gear and chain to control the lifting of tank, can take out the tank easily and convenient to wash .
  The pressure conveyor adopt floating movable structure , total length 5m , equipped with 28 paper pressing rollers , make the cardboard uniform bearing strength in pressing process.
  Counter designs scientifically, easy recording the amount you have been worked.
  Small pressure table (optional) . length 2.5m , big pressure table length 5m.
  Unit Introduction :
  1. Feeder System

1.High precision high speed feeder , make the feeding smooth .
  2.Strengthen type feeder device , the suction mouth angle can be adjustable , according to different kinds of surface paper .

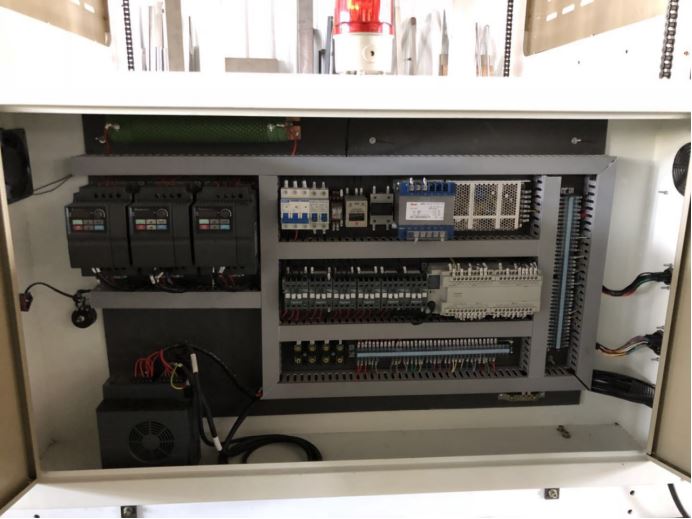

  2. Electric system :

1.Main electric appliances all adopt the imported famous brand .
  2.PLC tracking technique , automatic fault detection .

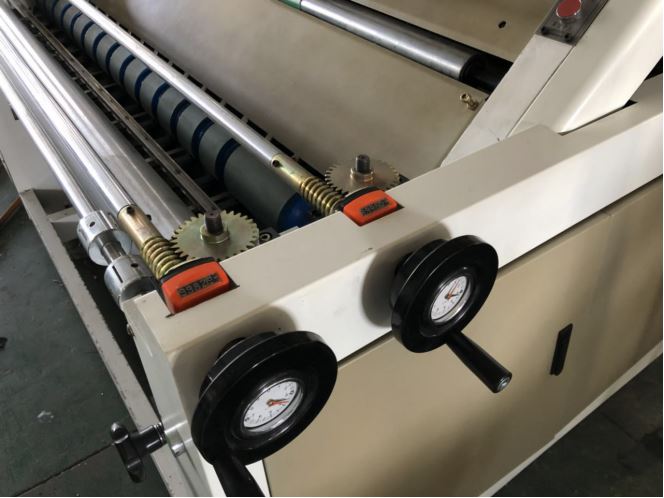

  3.Pressure adjustment system :

1.Adjust the pressure in single side , to ensure the pressure is same on both sides .
  2.With pressure gauge display , can easily adjust when change the paper size.
  4.Pressure conveyor :

1.Floating type pressure design , don’t need to adjust the pressure of flatbed .
  2.Heightening design , good for the smooth work of thick corrugated cardboard .
