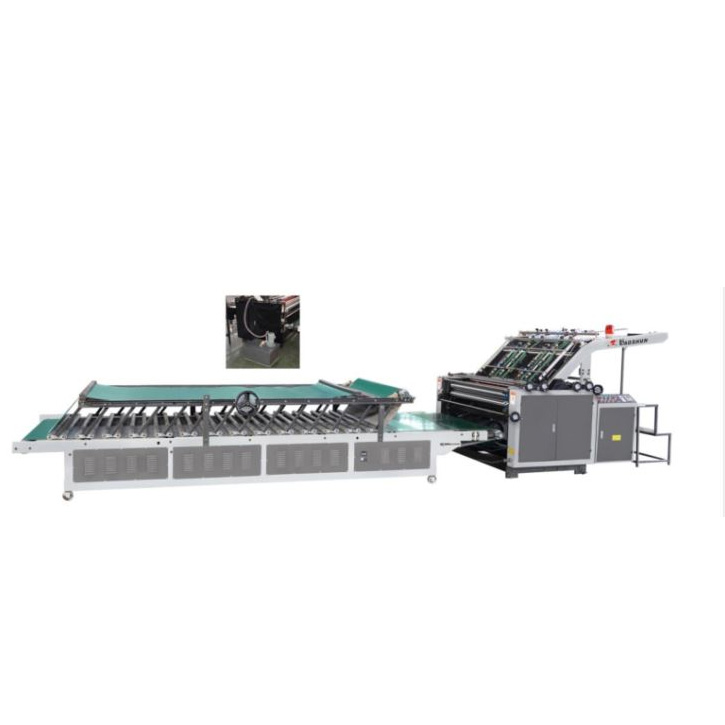

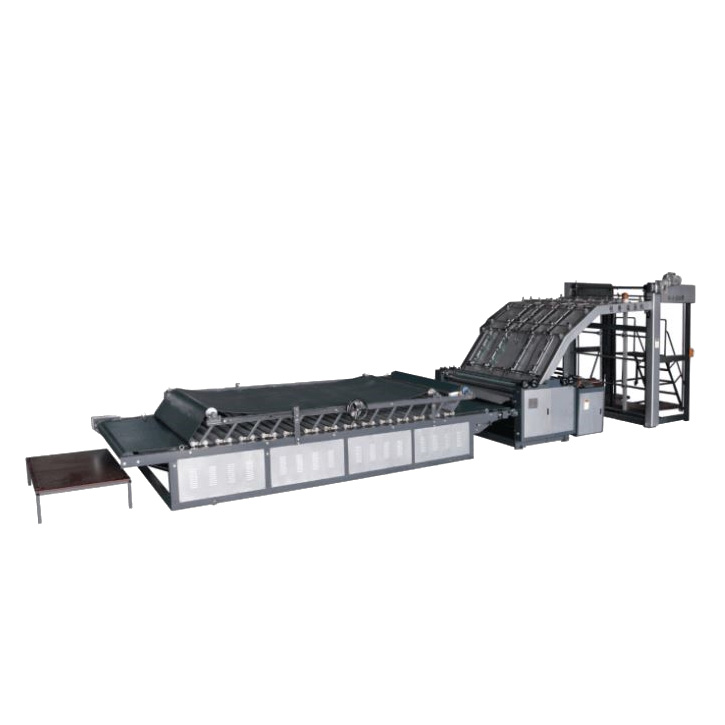

Instruction: The new type servo laminator machine adopt double frequency conversion at the front and back of the machine, automatic gluing,autom a tic washing gears, Photoelectric alignment, screw attached pressing, vacuum adsorption botto m paper, labour feeding paper, whole machine 8.8m,...
  Send Inquiry
  Machine structure characteristics：
  1 、 The surface paper conveying adopts advanced technology at home and abroad, researches and develops the latest type of paper feeding head, and uses four suction and four delivery combined with the blowing and inhaling generated by the powerful high pressure vacuum pump to realize efficient output of 200-500 gram paper.
  2 、 The whole process of paper feeding is combined with belt and pressure roller, and automatic tracking type feeding; pressure roller adopts special pressure roller for printing machine, thick and thin paper can be effectively transported; paper conveying is equipped  with anti-circle device, all kinds of paper can be smoothly conveyed;
  3.The bottom paper adopts a high-strength and high-friction perforated belt and a high-pressure suction to feed the paper, Make the bottom paper supply truly achieve no downtime; the length of the bottom paper is equipped with a rotatable paper holder to support the long paper; The bottom paper feed roller group adopts a pattern design, so that the machine is not prone to slipping at high speed;
  4.The gluing system adopts the liquid level high and low induction device, so that the glue can be replenished at any time, and the excess glue is recycled and used, which greatly saves the glue use cost; 5、The positioning of the bottom paper and the facial paper adopts the front gauge elastic positioning, and the paper of the size does not need to be adjusted twice; with the intelligent control system, the paper is automatically aligned in the traveling paper; the position of the front gauge is adjusted by the digital meter, and the minimum adjustable range is 0.1 mm;
  6 、The surface paper and bottom paper are transported by photoelectric detection to ensure the accuracy of paper feeding
  7、The positioning roller is designed with steel slotted for easy cleaning and improved service life.；
  8、Double pre-press roll design when the bottom paper and the face paper are attached；
  9、The bottom paper adopts the automatic humidification system; the steel roller under the rubber coating is automatically cleaned by the differential washing of the rubber roller, which ensures the cleaning is more clean and more effective, and also effectively prevents the warpage of the finished paper after the completion of the plastering;
  10、The pressure belt is designed with a suspension design, the pressure is automatically adjusted according to the thickness of the pressed product, and the pressed cardboard is firmer and stronger, and the strength is higher;
  11、The electrical appliances are all imported brands; the programmable controller and man-machine interface electrical control system are safe and reliable; the whole machine
  12、The machine adopts the transmission of imported synchronous belt and gear, which has high transmission efficiency, low noise, stable transmission, lower cost in later use and more convenient maintenance.
  13、Corrosive parts are made of stainless steel to prevent corrosion of the machine.
