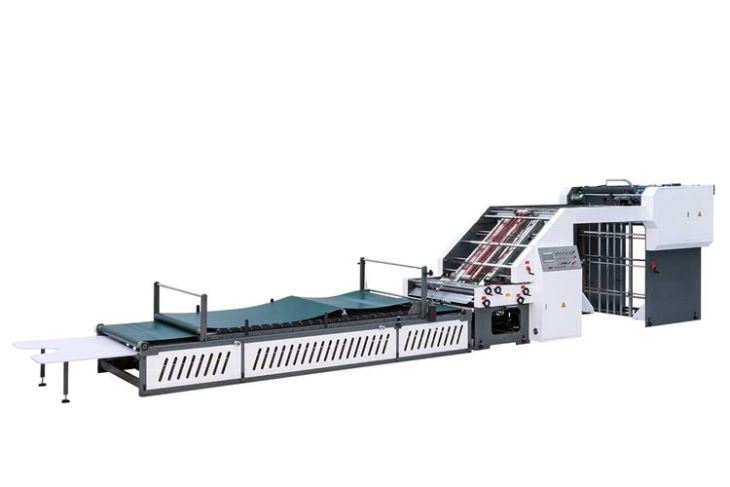

Specification

Model	TMJ-1300A	TMJ-1500A	TMJ-1600A
Max size of cover face	1300mmX1100mm	1500mmX1100mm	1600mmX1250mm
Mix size of cover face	400mmX400mm	400mmX400mm	400mmX400mm
Economic speed	0-100 piece/min	0-100 piece/min	0-100 piece/min
Precision	±1.5mm	±1.5mm	±1.5mm
Power	10kw	12kw	12kw
Dimension size	10m x 2m x 2.4m	10m x 2.15m x 2.4m	8.8m x 2.25m x 2.4m
Weight	About 6T	About 6T	About 6T

  Major feature:

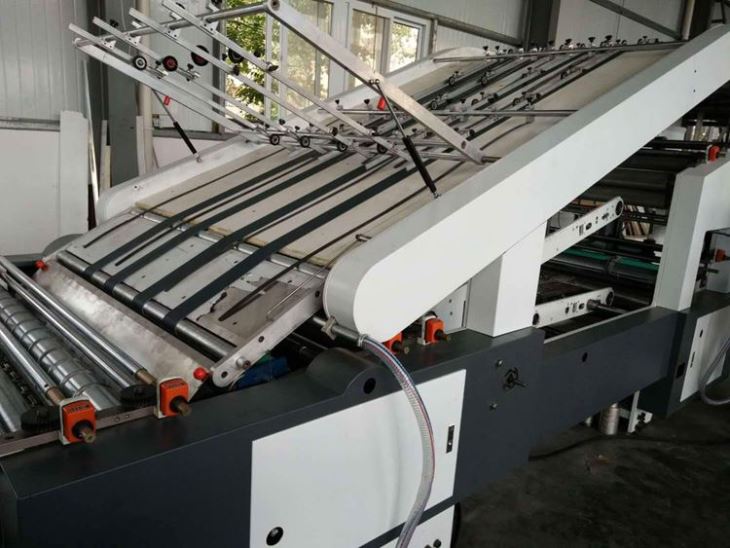

  1.The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
  2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
  3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead.

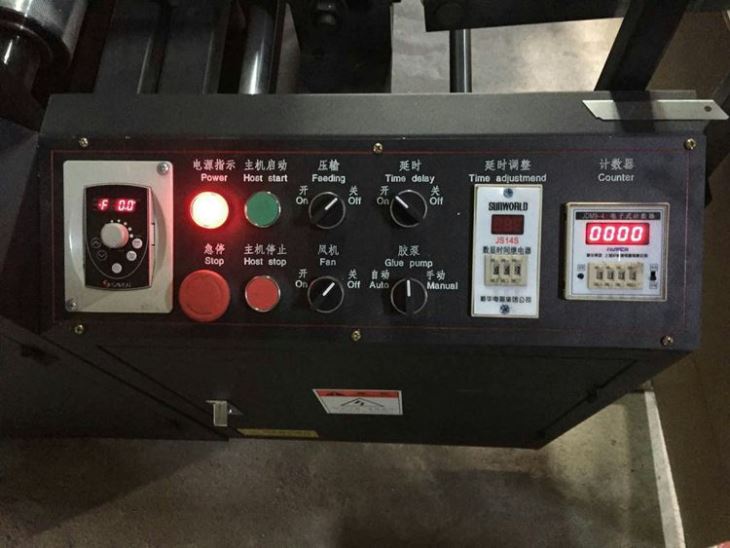

  4.Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.

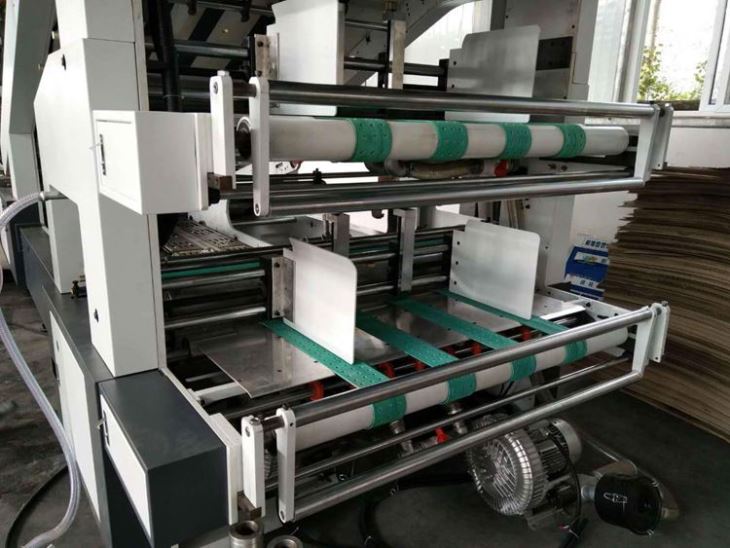

  5.Automatic gluing, and the glue can be used circulatory, avoid glue waste.
  6.Roller design scientifically, avoid glue fly out when the speed is high.
  7.Pressure rollers adopt one side adjustment, convenient and fast.
  8.Rocker controls wash roller's fluctuation, easy cleaning.
  9.Counter designs scientifically, easy recording the amount you have been worked.
  Packing and shipment

1)Inside packaging could be iron frame:it is more firm to avoid shake and damage.
  2)Outside packaging could be wooden case: the wooden case is of soft texture could reduce damage from impact
  3)There is waterproof wrapped on the product surface before shipment
  4)We also accept custom according to your requirement

Trade show

Customer visit

Certificate

  FAQ
  1. Are you a trading company or factory?
  We are the manufacturer and also we have import export license. We have been making automatic high speed water based printing slotting die cutting machine for more than 25 years.
  2. Where is your company located? How can I visit there?
  Our factory address: dongguang county, Cangzhou city, hebei province,China
  3. Can you send technician for installation and training?
  Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
  4. What's your advantages ?
  -- 25 years' experience: We have been in making automatic high speed water based printing slotting die cutting machine
  for 25  years.
  5. Whats your warranty time
  We can take 3 years warranty, actually our longest cooperation customer have been using our product for more than 10 years with no problem.
