Gantry stacker function:
  1.paper arm
  1)manual and automatic operation.
  2) paper arm transmission belt, which is independently adjusted for tightness, is not limited by the length of the belt.
  3) the paper folding speed can be arbitrarily adjusted within a certain range.
  2.Bed table lift
  1) strong chain driving.
  2) the stack height is 1600mm.
  3) the lifting motor of the bed table is equipped with brake function, so that the bed table can keep a fixed position without sliding down, and is equipped with anti-falling device.
  3.paper baffle
  1) pneumatic action of paper receiving bracket. When the cardboard accumulates to a predetermined height, the paper receiving bracket will automatically extend and hold the cardboard.
  2) manually adjust the position of rear baffle.
  3) flat corrugated belt prevents cardboard from slipping.

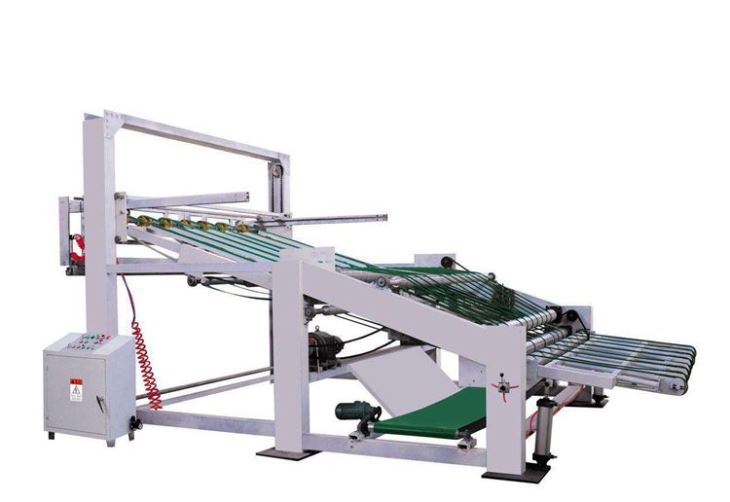

  Corrugated Board Stacker
  FUNCTION AND CHARACTERISTICS:
  * Flat-belt cardboard conveying.
  * Splicing length3000mm
  * Splicing height1700mm
  * Distribution speed160mmin
  * Distribution width1400-2200mm
  Characteristics:
  1. Flat-belt cardboard conveying.
  2. Stacking length:3000mm.
  3. Stacking height:1700mm.
  4. Delivery speed:160m/min.
  5. Effective width:1400-2200mm
  Structural Features:
  1.Automatic stack and collect cardboard
  2.Cardboard transverse output pneumatic control electric output
  3.Vertical cardboard collection use wide belt conveyor
  4.Set the number or height as per the requirements and switch to remove.
  Technical parameters:
  1.Working speed:150m/min
  2.Working breadth:1800mm
  3. The max length of the Cardboard packing:2400mm.
  4. The max height of the Cardboard packing:2400mm.
  5.  Air source:0.4—0.9Mpa.
  6. Steam pressure-:0.8—1.3Mpa
  7.Operating Direction:left machine or right machine(according to customer's factory)
  Diameter of roll:
  Conveyor belt shaft:Conveyor belt shaft the surface are polished and chromed
  The transverse output shaft:Ø124mm Conveyor belt shaft the surface are polished and chromed
  The motor parameters:
  1. Main pump motor: 0.75KW  380V  50HZ
  2. Transverse output motor: 0.55KW  380V 50HZ
  3. Walking motor: 0.55KW  380V   50HZ
  Applicable industry
  Clothing factory, shoe factory, food factory, pharmaceutical factory, pesticide packaging, beverage packaging box, handicraft packaging, cup packaging, electrical packaging, battery car packaging, children's toys packaging, logistics packaging, furniture packaging, all kinds of small commodity packaging, industrial small parts packaging, Carton box factory.

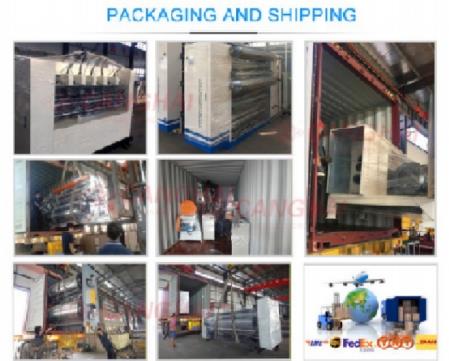

  Packing and shipment
  
  1)Inside packaging could be iron frame:it is more firm to avoid shake and damage.
  2)Outside packaging could be wooden case: the wooden case is of soft texture could reduce damage from impact
  3)There is waterproof wrapped on the product surface before shipment
  4)We also accept custom according to your requirement
  Trade Shows

  Customer visit

  Certifications

  FAQ
  1. Are you a trading company or factory?
  We are the manufacturer and also we have import export license. We have been making automatic high speed water based printing slotting die cutting machine for more than 25 years.
  2. Where is your company located? How can I visit there?
  Our factory address: dongguang county, Cangzhou city, hebei province,China
  3. Can you send technician for installation and training?
  Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
  4. What’s your advantages ?
  -- 25 years' experience
  5. Whats your warranty time
  We can take 3 years warranty, actually our longest cooperation customer have been using our product for more than 10 years with no problem.
