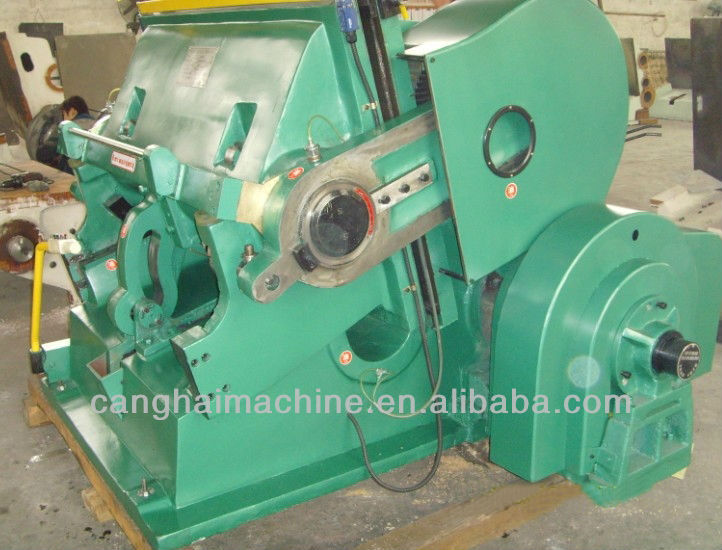

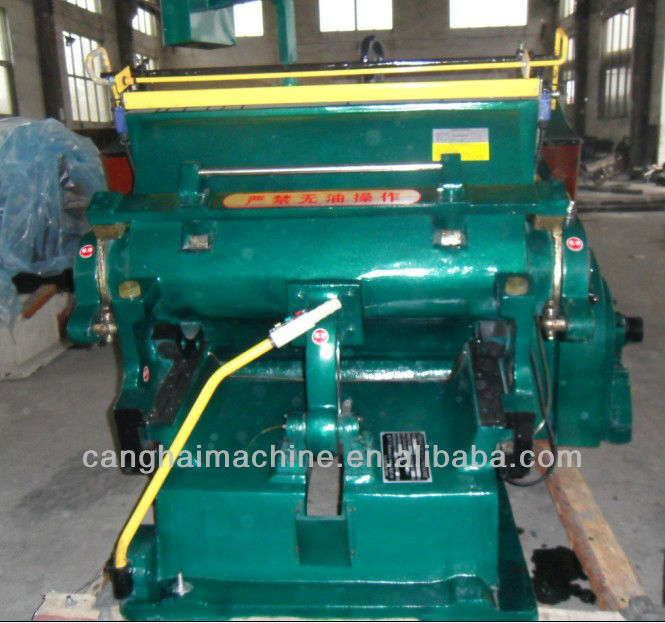

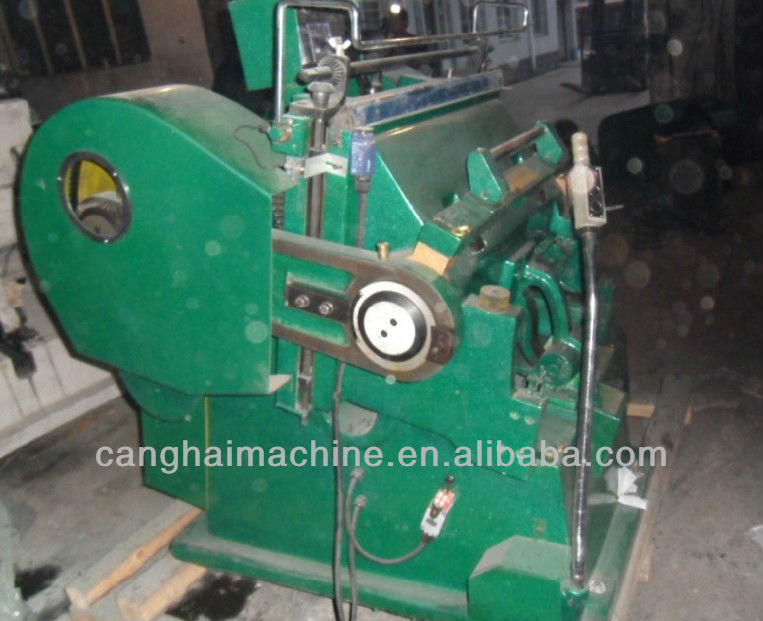

Creasing cutting machine or corrugated board making machine
Functions and characteristics:
1 High strength dve to one piece casting by using top quality materials for machine body
2 Smooth runing, big pressure and low noise are obviously remarked as 3-step helical gear mechanism is adopted
3 Single plate electromagnetic clutch is sensitive subreliable
4 Operational altitude is reasonably arranged.Moving-bed opens to its optimun
5 Safty system is really reliabl
Note:(The color of equipment can be choose from)
RQ serial die cutting & creasing machines special equipments of die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration and plastic industries. RQ machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Technical Parameters:
|
Model |
Max.Rule Area (mm) |
Working speed(strokes/min) |
Max Rule Length |
Motor power(kw) |
Weight (kg) |
Overall Deminsion(L*W*H) (mm) |
|
ML750 |
750*520 |
25±2 |
<25m |
2.2 |
1900 |
1260*1400*1280 |
|
ML930 |
930*670 |
23±2 |
<25m |
5 |
3000 |
1670*13701630 |
|
ML1040 |
1040*720 |
21±2 |
<30m |
5.5 |
4000 |
1800*1680*1600 |
|
ML1100 |
1100*800 |
20±2 |
<30m |
5.5 |
4500 |
1900*1780*1700 |
|
ML1200 |
1200*850 |
18±2 |
<38m |
7.5 |
6500 |
2000*2140*1940 |
|
ML1300 |
1300*920 |
18±2 |
<38m |
7.5 |
6500 |
2000*2140*1940 |
|
ML1400 |
1400*1000 |
17±2 |
<38m |
7.5 |
7200 |
2010*2400*1950 |
|
ML1500 |
1500*1100 |
17±2 |
<40m |
7.5 |
8500 |
2010*2480*1960 |
|
ML1600 |
1600*1250 |
16±2 |
<43m |
11 |
11800 |
2170*2560*2080 |
|
ML1700 |
1700*1280 |
16±2 |
<45m |
11 |
12500 |
2170*2560*2100 |
|
ML1800 |
1800*1280 |
16±2 |
<50m |
11 |
14200 |
2180*2760*2100 |
|
ML2000 |
2000*1400 |
16±2 |
<58m |
15 |
16500 |
2270*3100*2150 |
1400MM die-cutting and creasing machine
