Model

1200*2400

The highest speed（pcs/min）

180

Maximum feeder size（mm）

1200×2400

Minimum feeder size（mm）

400×700

Largest printing size（mm）

1200×2380

Standard overprinter precision（mm）

7.2

Minimum slotting gap(mm0

knife（mm）

165×165×165×165

Anti knife（mm）

260×70×260×70

Suitable cardboard thickness（mm）

2-12

The highest gluer speed（pcs/min）

100-150

item

instrutions

1、opetation control

1）Computer touch screen，PLC and the revolving encoder can  detect adjustment automatically, automatic store orders quickly .
2）The phase size of push paper converters can be adjustable through PLC and the revolving encoder,also electrical button
3）Equipped with a sudden stop device to ensure security
4）The phase size of push paper converters has zero setting,ensuring the first feeder precison

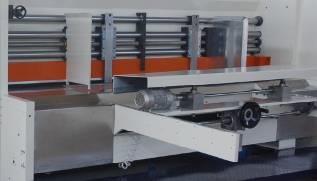

2、the adjustment of push paper converters

1）Adopting high precision speed-adjusted 360
2）Phase zero device, ensure consistency position paper push

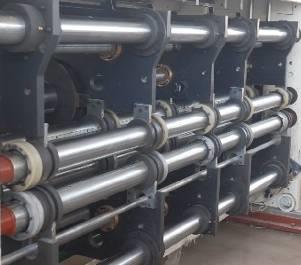

3、gluer roller

1)The roller surface grinding, the dynamic balance correction, chromium plating, turn smoothly.
2) Frequency convertor control, PLC automatic network with host speed, ensure gluing evenly.
3) Set non-stop automatic glue on the function, not dry solid together.
4)Together with adaptive seal and blow back glue system

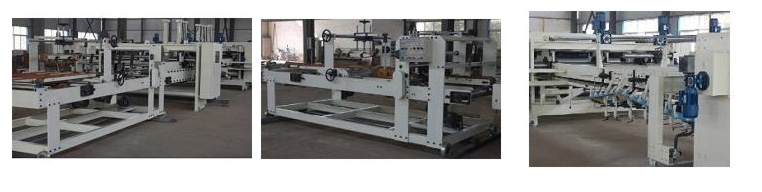

4、shaped system

1）Germany import MURTFELDT - CKG precision positioning precision, chain guide, patent, pushing paper paper feeding is accurate.
2) Slider orientation and bending design, belt "cardboard cartons, remove the maximum reduction.
3) Special 45 ° high oblique crease knife, forming a better bend lines.
4) On both sides of the patent agency, qi paper forming can eliminate the scissors.
5) Adaptive 3, 5 ply cardboard.

5、transmit belt

Imported rubber belts and two-sided patterns beige blue film base

Item

Description

Operation Control

packaging speed can be up to 25 packs / min

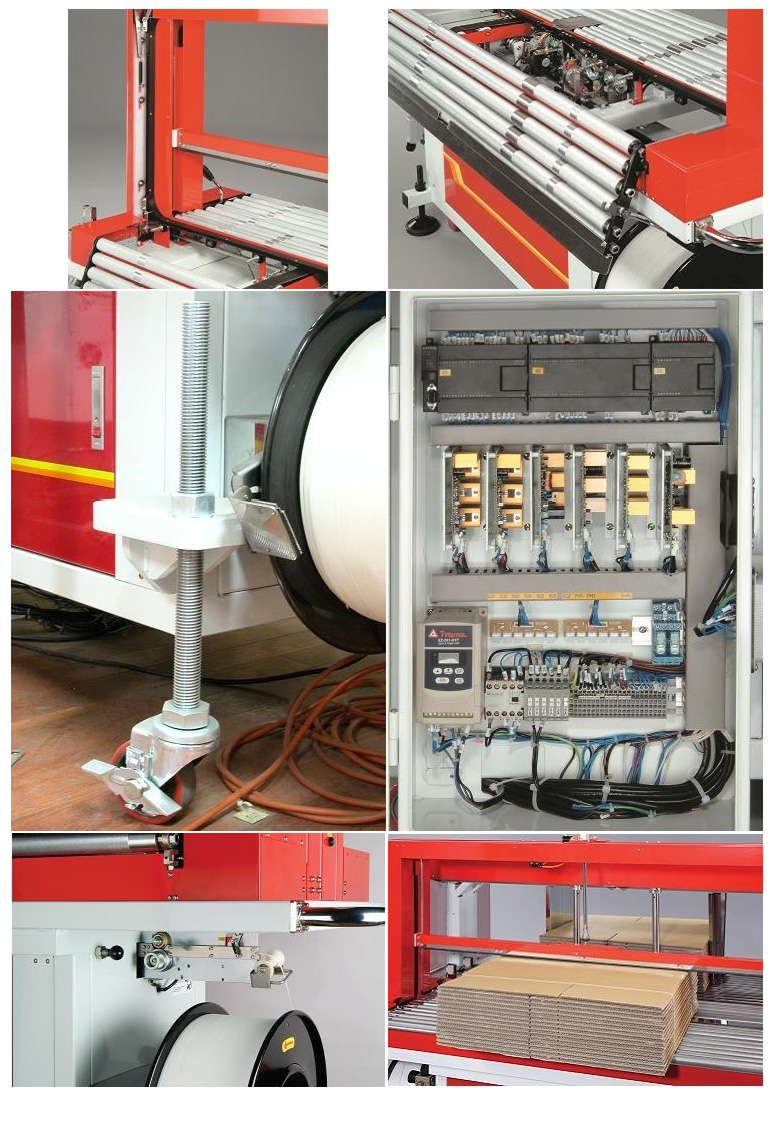

System Features:
Equipped with "Proface" touch screen controlled by Siemens S7 PLC with an integrate function of trim packaging.
Automatic setting system can work according to the signals sent out by the buttons or the position machine, and set packaging according to the size of the first pack;
Stack the packs perfectly trim from the six azimuths;
E-drive, variable frequency control system and up&down roller ensure a smooth delivery for the packs.
Select single-strap packing or dual-strap packing according to the requirements ; Single & Dual-strap packing head can do single-strap packing or dual-strap packing.
Electric drive hold-down plate press the packs; packing the packs in its running direction, and the packing direction is the same with the folding direction of the cartons;
The drive belt in the optional pack exit will deliver the last pack out of the machine.
Packing technology:
Thruster push the packs through the pre-thread packing straps, and the straps wrap three sides of the packs
Crochet hook hauls the strap to the fourth side of the pack, forming a closed circle and then start up the heating equipment, electically control the tension of the straps;
Crochet hook and packing equipment adopt brushless DC motor technology;
Thermocouple heating control welding technology makes the pre-heating time for the system only takes 10 seconds.
