ML Series Creasing
1.Parameter
|
Code |
Max.effective cutting area |
Speed |
Motor |
Weight |
Overall Size(L×W×H) |
|
ML-750 |
750×520mm |
28±2(strokes/min) |
2.2kw |
2000kg |
1260×1350×1280mm |
|
ML-930 |
930×670mm |
23±2(strokes/min) |
4.0kw |
3000kg |
1670×1670×1630mm |
|
ML-1100 |
1100×800mm |
20±2(strokes/min) |
5.5kw |
4500kg |
1900×1800×1700mm |
|
ML-1200 |
1200×830mm |
20±2(strokes/min) |
5.5kw |
4800kg |
1900×2000×1700mm |
|
ML-1300 |
1300×920mm |
18±2(strokes/min) |
7.5kw |
6000kg |
2000×2400×1800mm |
|
ML-1400 |
1400×1000mm |
18±2(strokes/min) |
7.5kw |
6500kg |
2000×2450×1900mm |
|
ML-1500 |
1500×1050mm |
18±2(strokes/min) |
7.5kw |
7000kg |
2000×2500×1930mm |
|
ML-1600 |
1600×1250mm |
16±2(strokes/min) |
11.0kw |
11000kg |
2170×2560×2230mm |
|
ML-1800 |
1800×1300mm |
16±2(strokes/min) |
15.0kw |
13500kg |
2240×2800×2130mm |
|
ML-2000 |
2000×1400mm |
16±2(strokes/min) |
15.0kw |
14500kg |
2280×2900×2230mm |

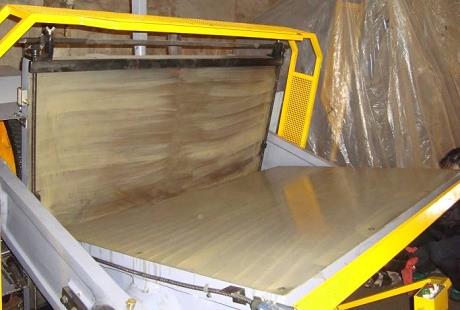

1.Plate

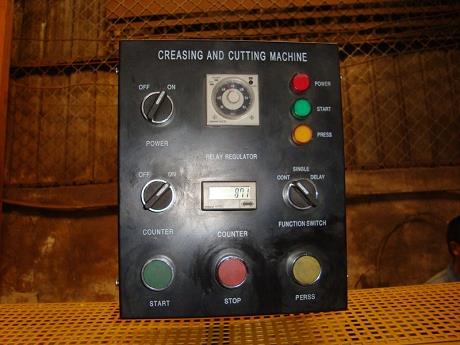

2.Control Panel

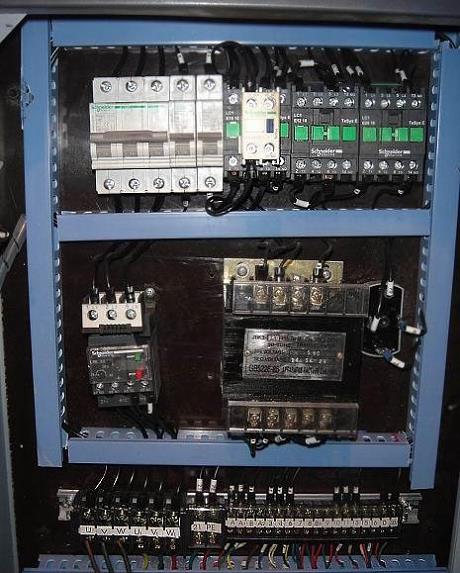

3.Schneider Electric

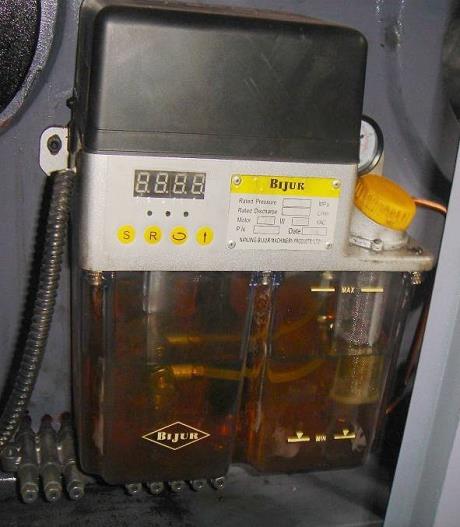

4.Automatic 0il System

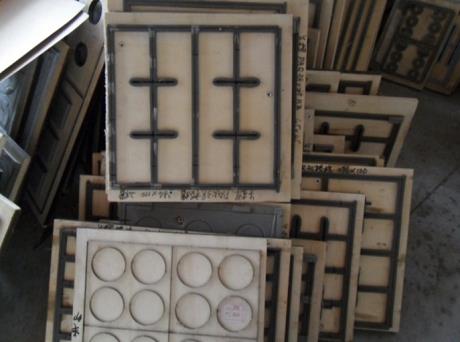

5.Mould

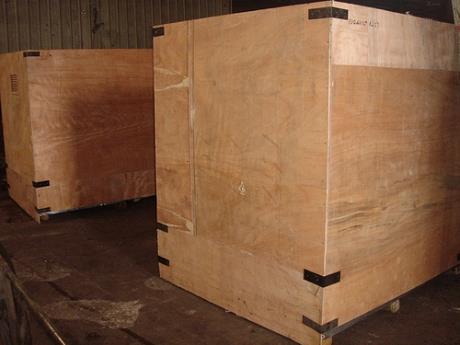

6.Wooden box package(Option)
FAQ
A.What material can be used on this machine?
-----Cardboard, Paperboard, Chipboard, Corrugated Carton Board.
B.All grades machine use the stainless steel plate?
----Yes.
C.What is the HS code? ----84414000
