Automatic Folder Glue Machine
1.Technical parameters
|
Model |
2000 |
ZXJ-A2400 |
ZXJ-A2600RS |
ZXJ-A2800RS |
|

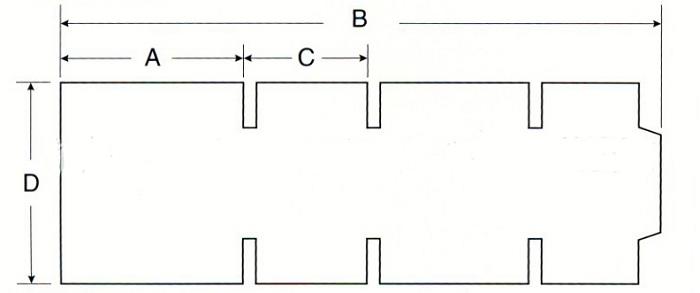

Max.feeding size |
1000*2000mm |
1100*2400mm |
1200*2600mm |
1200*2800mm |
|
Min. feeding size |
300*800mm |
300*800mm |
300*800mm |
300*800mm |
|
Installation area |
2450*13500mm |
2800*15500mm |
2900*15500mm |
3000*15500mm |
|
Power required |
10KW |
10KW |
10KW |
10KW |

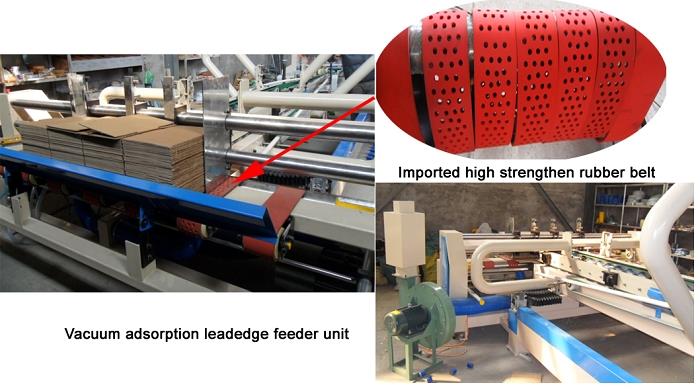

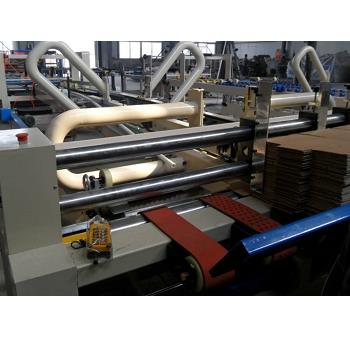

★Adopt adsorption type belt lead edge paper feeding method, accurately and stable.
★Adopt high-grade electromagnetic clutch and electromagnetic brake system. Paper feeding unit can be controlled individually, easy operation.

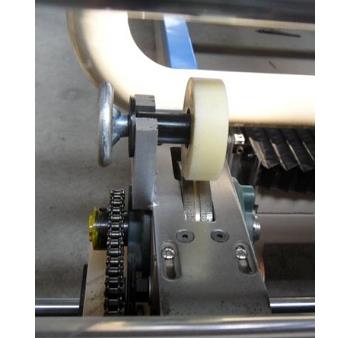

★Creasing wheel is adjustable for the thickness 2-8mm of board(3-5 layers corrugated)
★Frequency control of motor speed with the glue folding department, has a speed of 0-130m/min.
★Front baffle and the belts of the feeding unit can be adjusted right and left, quick adjustment of various sizes and length of the cardboard box.

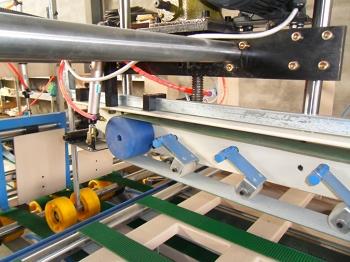

Glue folding department:
★Main motor adopt frequency control of motor, no noise, convenient and stable.
★Imported circular seamless docking convey belt made of high wear resistant material, folding of cardboard accurately and automatically.
★Gluing department adopt high quality stainless steel gluing wheel.
★Folding department equipped with paper corrective and creasing corrective device.
★Folding department equipped with two rows fixed position wheel, precision shaping.
★Speed 0-130m/min, the right and left baffles are adjusted electrically.

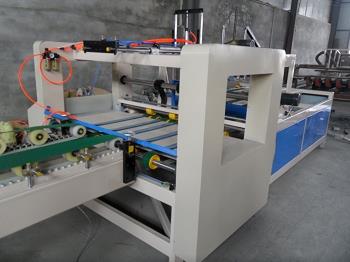

Counting and stacking department:
★With PLC programmable controller and touch screen digital control, easy operation, input date without downtime, automatic counting ,stacking and output.
★Counting department adopt frequency control, speed can be adjusted.
★With imported circular seamless docking convey belt, stacking trimly, has a speed of 0-130m
★With knocking system beat the paperboard, has corrective function.
★Counting and output pneumatically, with PLC, accuracy and fast.
★Output unit adopt upper and lower belt compressing tightly, make the carton gluing firmly.
4. Parts pictures

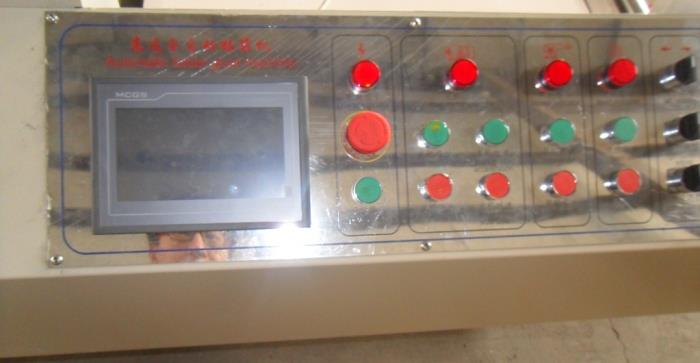

Touch screen with English operation words.

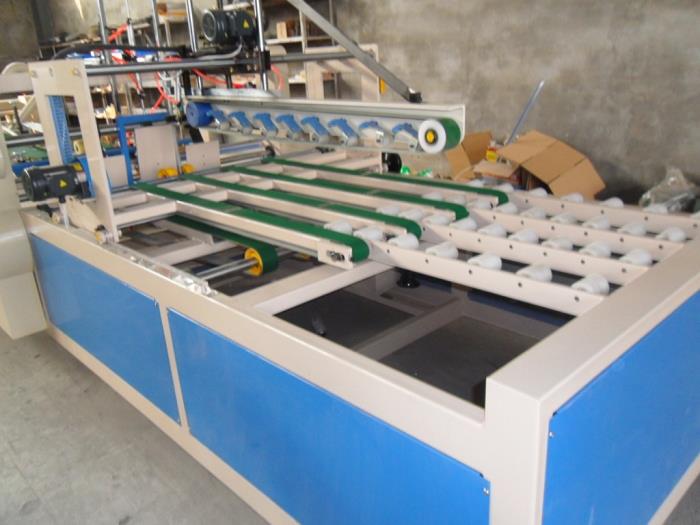

The counting apartment
Main Electrical:
|
No. |
Name |
No |
Brand |
Place of Origin |
|
1 |
Touch screen |
1 |
Delta |
Taiwan |
|
2 |
PLC |
1 |
Delta |
Taiwan |
|
3 |
Inverter |
2 |
Delta |
Taiwan |
|
4 |
Time relay |
2 |
Omron PLC charges |
Japan |
|
5 |
Photoelectric switch |
2 |
Omron PLC charges |
Japan |
|
6 |
Indicator |
5 |
Schneider |
France |
|
7 |
Thermal overload relays |
5 |
Schneider |
France |
|
8 |
Circuit breaker |
3 |
Schneider |
France |
|
9 |
Travel switch |
4 |
Omron PLC charges |
Japan |
|
10 |
Contactor |
9 |
Siemens |
Germany |
|
11 |
Button |
24 |
Schneider |
France |
|
No. |
Name |
Type |
No |
Place of Origin |
|
1 |
Reduction |
GH18-1:15-200w |
2 |
Taiwan |
|
2 |
Reduction |
GH22-1:40-200w |
1 |
Taiwan |
|
3 |
Reduction |
GH28-1:30-400w |
2 |
Taiwan |
|
4 |
High-pressure blower |
EHS-629 |
1 |
Taiwan |
|
5 |
Frequency conversion motor |
Y132M4-7.5KW |
1 |
Shanghai |
|
6 |
Frequency conversion motor |
Y100L1/4-2.2KW |
1 |
Shanghai |
