Carton Stitcher

Double servo semi-automatic stitching machine-3400 1.Technical parameters. 2.Characteristics ★Japan imported Yaskawa brand dual-servo-motor is ensuring the accurately precision, also decreased the mechanical problems。 ★Touch screen operation, more easy, and changing conveniently. ★The progress

Send Inquiry

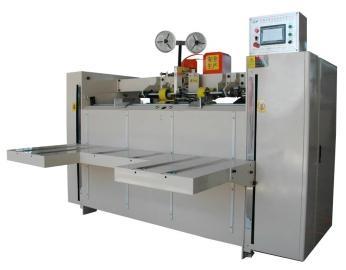

Double servo semi-automatic stitching machine-3400

1.Technical parameters.

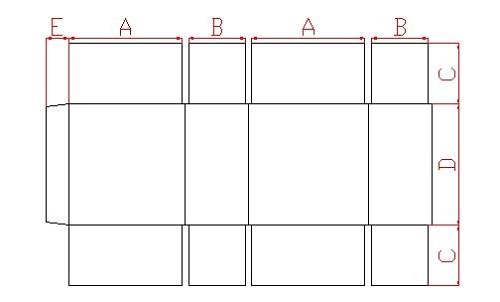

（A+B）X2 (Maximum size)	3400mm
（A+B）X2 (Minimal size)	680mm
E (The max nail tongue width)	40 mm
(Max height of feeding paper)	900 mm
(The width of machine)	3000 mm
（T）(The weight of the machine)	2
(speed nail/min)	600
(Nails No. stiches)	1-99

2.Characteristics
★Japan imported Yaskawa brand dual-servo-motor is ensuring the accurately precision, also decreased the mechanical problems。
★Touch screen operation, more easy, and changing conveniently.
★The progress is controlled by Omron brand PLC system.
★Electric control the tail gate using stepper motor, ensure more easy for changing size.
★It can nail single nail(/), double nails(//), strengthen nails(// / //) in one time.
★You can finish the change carton size and adjusting nails in 1 minutes.
★It can nail box without lid(cover)
★The counting device of feeding unit with photoelectric sensors, can rise automatically.
★There is also automatic counting device at the end of machine, the No. can be set 1-99 cartons and transport to the machinery end for bundled package progress.
★Nails form distance: 30-120mm（adjustable）
★Table lift height: 900mm.
★Machine size: 2.8*2.7*2M

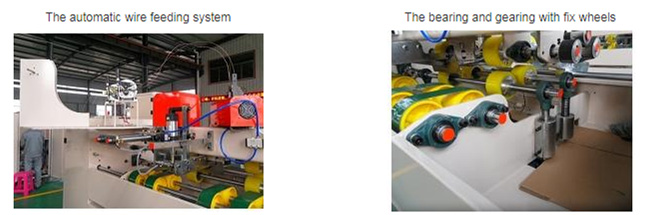

★ Automatic wire feeding unit(optional)
3. Main configuration

No	Name	Brand	Origin	Ref
01	Servo motor of nailing head	Yaskawa	Japan
02	Servo motor of feeding unit	Yaskawa	Japan
03	PLC	Omron	Japan
04	Contactor and intermediate	Siemens	Germany
05	Reducer	The ming	Taiwan	2 sets
06	CAVEX Reducer	True praise	Hanzhou	2 sets
07	Photoelectric, switch	Omron	Japan
08	Touch screen	Weilun	Taiwan
09	Intermediate relay	Schneider	Franch
10	Universal joint	Jade bamboo	Taiwan
11	Nail head		Japanese steel imported
12	Cylinder, solenoid valve	The dirk	Taiwan
13	Knife		Tungsten alloy production	Resistant abrasion
15	Bottom die		Tungsten alloy production	Corrosion resistant
15	Bearing	Humanistic	Jiangsu

4. Parts pictures

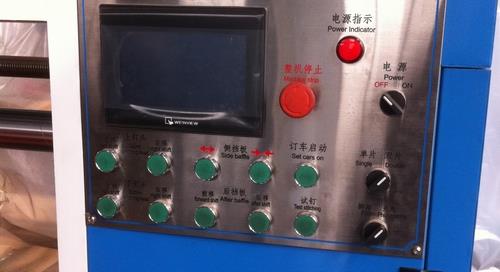

Touch screen with English operation words.

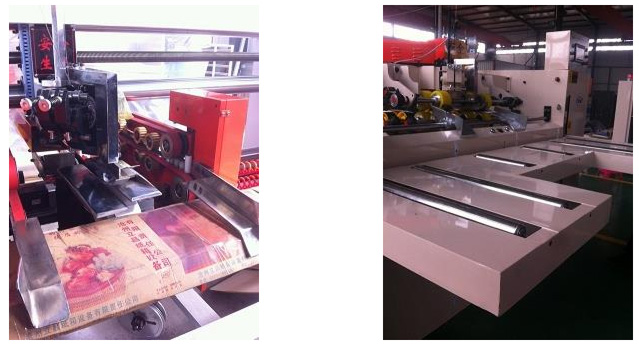

The front of machine and nailing head
