You can choose  paper bearing shelf

1.Steel plate wall type

2.Iron casting wall type

Features:
  1.reel paper lift-lower, clamp, loosen, movement, contraposition operated by motorize.
  2. Reel paper strain control by manual brakes.
  3.Max. diameter of reel paper:φ1500mm.
  4. Clamp paper width:600mm-1600mm,600mm-1800mm,600mm-2200mm.
  5. Installment power:6kw.
  6. The when clamping moving up and down selects cycloid motor,and the thick paper used for covering arm overload or touch the ground, itl be effective to safeguard the machinery not to be damaged.
  7. Max support weight: 2T.
  8. The structure is double rotary shaft with four arms, support two paper mill rolls on both arms at the same time.

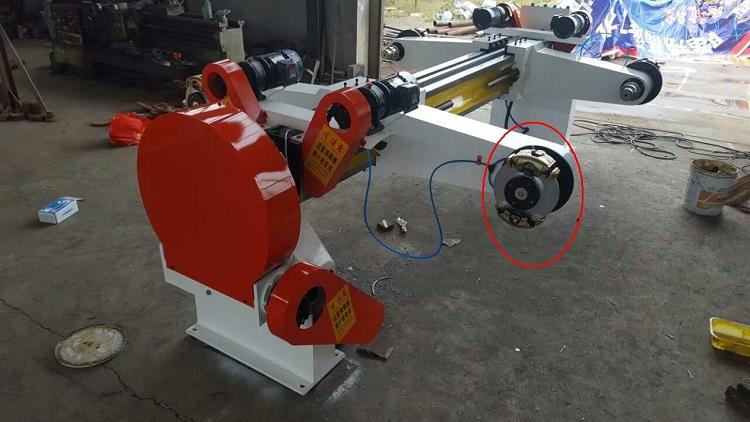

  The machine can with pneumatic brake
